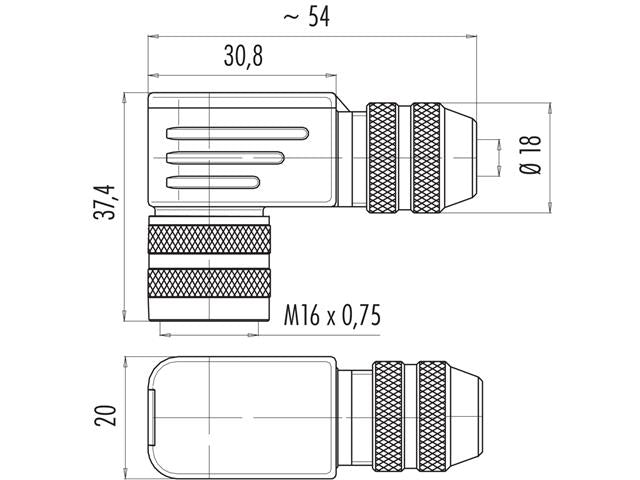

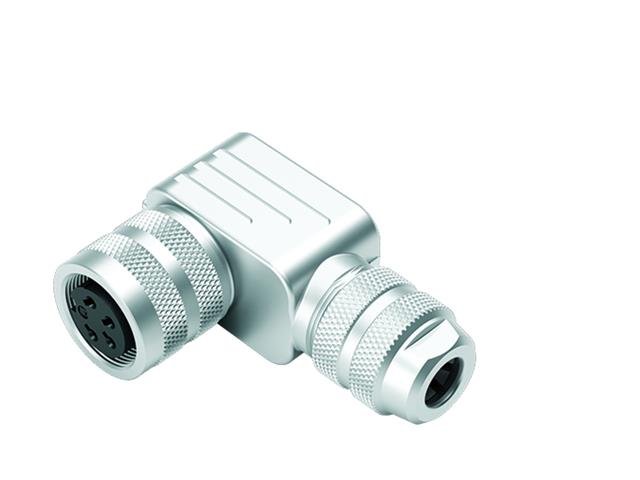

• Connector design : female angled connector
• Version : connector female angled
• Connector locking system : screw
• Termination : screw
• Degree of protection : IP67
• Cross-sectional area : max. 0.75 mm² / max. AWG 18
• Cable outlet : 6.0 - 8.0 mm
• Twistability : 90° (4 coding options)
• Temperature range from/to : -30 °C / 95 °C
• Mechanical operation : > 500 Mating cycles
• Weight (g) : 65.91

Electrical parameters

• Rated voltage : 60 V
• Rated impulse voltage : 800 V
• Rated current (40 °C) : 5,0 A
• Insulation resistance : ≥ 10¹⁰ Ω
• Pollution degree : 3
• Overvoltage category : I
• Insulating material group : III
• EMC compliance : shieldable
• Shield connection : shielding ring

Material

• Housing material : CuZn (Brass nickel plated)
• Contact body material : PBT (UL94 V-0)
• Contact material : CuSn (bronze)CuZn (brass)
• Contact plating : Ag (silver)
• REACH SVHC : CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead)

1. Datasheet - 99-5682-75-07
