99-9209-060-04

Name: 99-9209-060-04 - Communica [Part No: 99-9209-060-04]
Brand: Binder
SKU: 99-9209-060-04
Price: 131 ZAR
Availability: OutOfStock

SKU: 99-9209-060-04

BRAND: Binder

Sold Out
R 150.65_{(inc VAT)}
R 131.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular Snap-in Connectors IP67

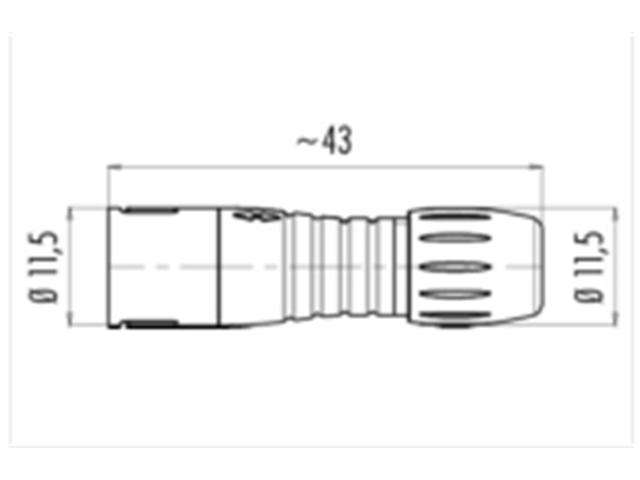

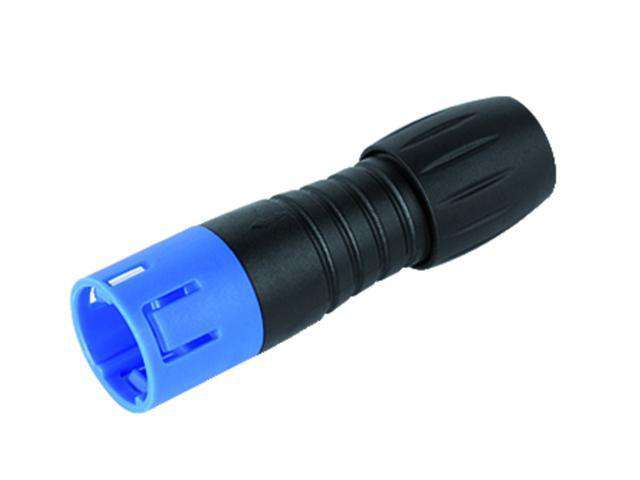

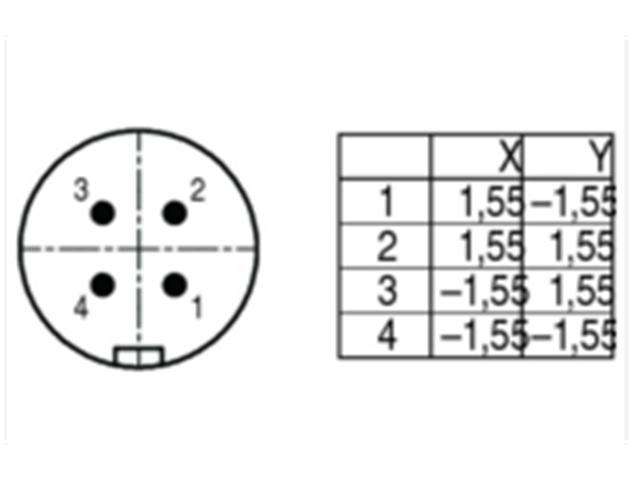

Circular Connector Submini Cable Male Straight 4 Pole Snap-in 3-5mm Cable Entry Blue Top IP67

Overview

Features

Specification

General Values

Connector Design : Cable Connector
Connector locking system : Snap
Termination : Solder
Wire Gauge (mm) : 0,25 mm²
Wire Gauge (AWG) : 24
Cable Outlet : 3 - 5 mm
Upper Limit Temperature : 85 °C
Lower limit temperature : -25 °C

Electrical Values

Rated Voltage : 125 V
Rated Impulse Voltage : 1500 V
Pollution Degree : 2
Overvoltage Category : II
Insulating Material Group : II
Rated Current (40 °C) 2,5 A
Volume Resistivity ≤ 3 mΩ
EMC Compliance : Shielding is not Possible
Degree of Protection : IP67
Mechanical Operation : > 500 Mating Cycles

Material

Contact Material : CuZn (Messing)
Contact Plating : Au (gold)
Contact Body material : PA (UL 94 V-0)

Downloads

Datasheet Download

Discover the 99-9209-060-04 Circular Connector, designed for durability and reliability. With an IP67 rating for water and dust resistance, this male straight connector ensures secure connections for your projects. Ideal for various applications, it features a snap-in locking system and supports cable entry of 3-5mm. Upgrade your connectivity with this high-performance, long-lasting connector!
