CPF5-6FV

Name: CPF5-6FV - Communica [Part No: CPF5-6FV]
Brand: Xytron
SKU: CPF5-6FV
Price: 31.20 ZAR
Availability: InStock

SKU: CPF5-6FV

BRAND: Xytron

R 35.88_{(inc VAT)}
R 31.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Terminals

Category: Euro Terminal Blocks Combicon

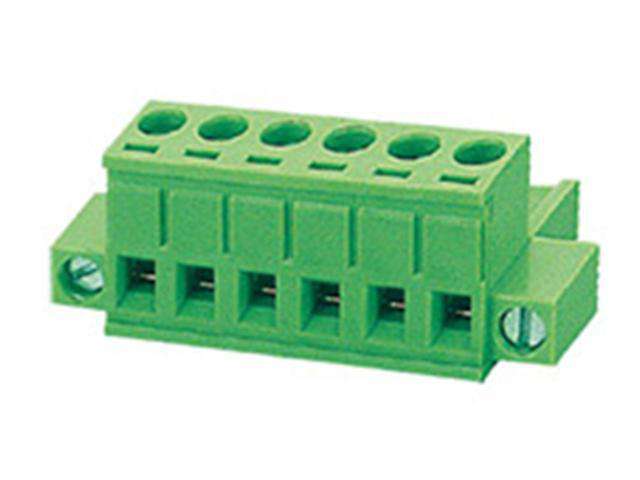

5MM 300V 15A Plug In Terminal with 6 Pins and Screw Clamp

Overview

Features

Specification

Electrical

Standard : UL
Rated voltage : 300V
Rated current : 15A
Wire range : 28-12AWG
Withstanding voltage : 4KV

Mechanical

Torque : 0.4Nm(3.5Lb-In.)
Ambient temperature : -40°C~+105°C
Strip length : 7mm

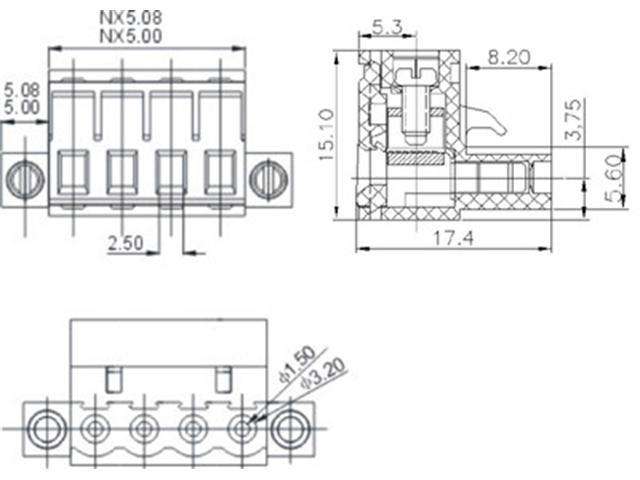

Dimensions

Pitch : 5.0mm, 5.08mm
Poles : 2P-22P

Material

Housing : PA66,UL94V-0
Screws : M2.5,steel,Cr3+ Zn plated
Contact : Phosphor bronze
Cage : Brass,Ni plated

Gender	Female
No. of Pins	6
Size	5mm
Electrical Rating	300V 15A
Wire Range	28-12AWG

Upgrade your electrical projects with the CPF5-6FV Plug In Terminal. This robust 6-pin terminal features a 300V, 15A rating, ensuring reliable connections for 28-12 AWG wires. With a durable PA66 housing and a wide temperature range of -40°C to +105°C, it's perfect for various applications. Experience superior performance and safety with this essential component!
