CPM5IL-6FV

SKU: CPM5IL-6FV

BRAND: Communica

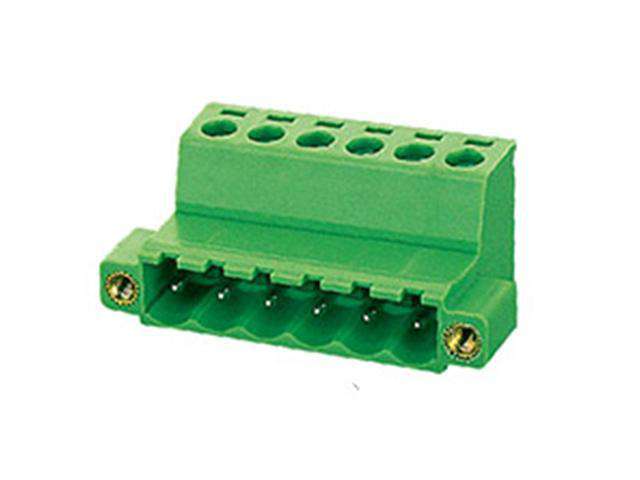

5mm 15A 300V Plug in Terminal Block with 6 Pins, Screw Clamp and Plug-In Header

Overview

Features

 Electrical

  • Standard : UL
  • Rated voltage : 300V
  • Rated current : 15A
  • Wire range : 28-12AWG
  • Withstanding voltage : 4KV
Mechanical
  • Torque : 0.4Nm(3.5Lb-In.)
  • Ambient temperature : -40°C~+105°C
  • Strip length : 7mm

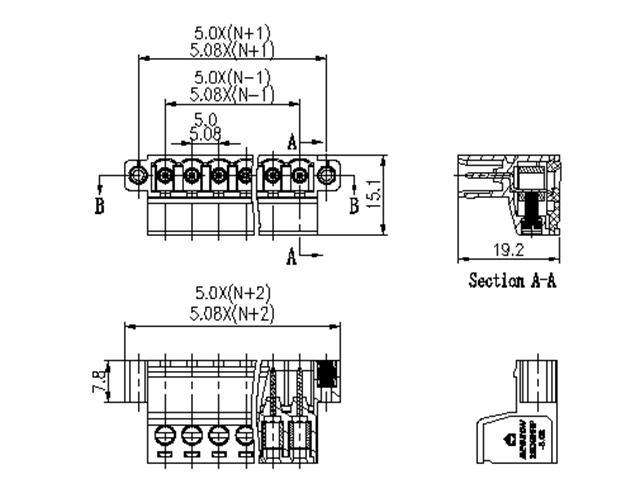

Dimensions
  • Pitch : 5.0mm(.197"),5.08mm(.200")
  • Poles : 2P-22P
Material
  • Housing : PA66,UL94V-0
  • Contact : Copper
  • Cage : Brass, Ni plated
  • Nut : M2.5,Brass



Specification



Gender Male
No. of Pins 6
Mates With CPF5-6FV
Size 5mm
Electrical Rating 300V 15A
Wire Range 28-12AWG
