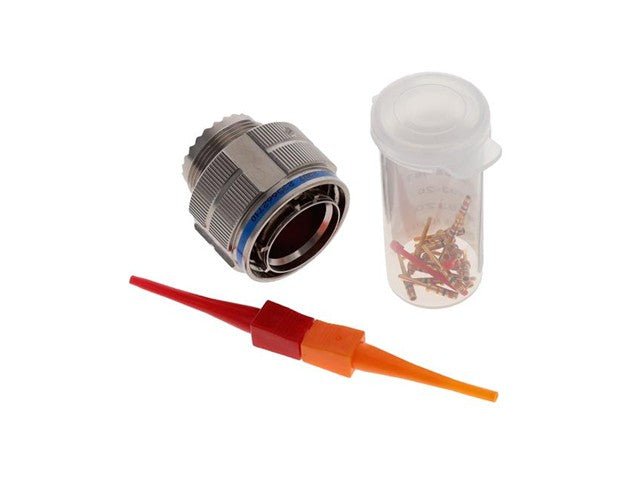

D38999/26WB98PN - MIL - Spec / MIL - Type -

D38999/26WB98PN

SKU: D38999/26WB98PN

BRAND: TE Connectivity


In Stock
R 1,017.75 (inc VAT)
R 885.00 (ex VAT)

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: MIL-DTL 38999

MILSPEC 18 Pin Plug Straight

MILSPEC 18 Pin Plug Straight

Specifications

  • Connector Type: Plug, Male Pins
  • Number of Positions: 18
  • Grade: Military
  • Qualification: MIL-DTL-38999 Series III
  • Shell Size – Insert: 15-18
  • Shell Size, MIL: D
  • Mounting Type: Free Hanging (In-Line)
  • Mounting Feature: -
  • Termination: Crimp
  • Fastening Type: Threaded
  • Orientation: N (Normal)
  • Primary Material: Metal
  • Shell Material: Aluminum
  • Shell Finish: Electroless Nickel
  • Contact Finish – Mating: Gold
  • Color: Silver
  • Ingress Protection: Environment Resistant
  • Material Flammability Rating: -
  • Features: Coupling Nut
  • Shielding: Shielded
  • Current Rating (Amps): -
  • Voltage Rating: 600VAC, 850VDC
  • Cable Opening: -
  • Operating Temperature: -65°C ~ 200°C
  • Backshell Material, Plating: -
  • Contact Material: Copper Alloy
  • Contact Finish Thickness – Mating: 50.0µin (1.27µm)
  • Insert Material: -
  • Applications: Aerospace, Aviation, Marine, Military

Additional Information

Device Connector
Type 18 Pin Plug Straight
