ELKA5012PG9

Name: ELKA5012PG9 - Communica [Part No: ELKA5012PG9]
Brand: Hirschmann
SKU: ELKA5012PG9
Price: 163.40 ZAR
Availability: InStock

SKU: ELKA5012PG9

BRAND: Hirschmann

In Stock
R 187.91_{(inc VAT)}
R 163.40_{(ex VAT)}

Collections: Connectors

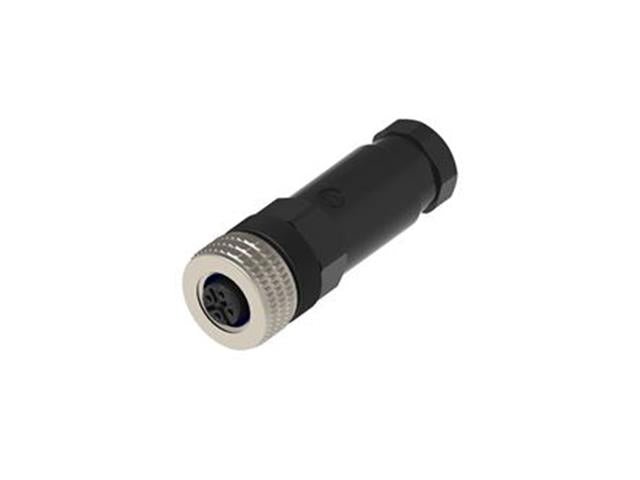

Circular Connector M12 A COD Cable Female Striaght. 5 Pole Screw Terminal PG9 Cable Entry

M12 Circular Connector

Product Sub Family	M12 Standard
Connector Type	Field attachable
Type of Contact / Gender	female
Connector Design	straight
Number of Pins	5
Coding	A
Attachment Type	Coupling Nut
Rated Voltage	60 V
Rated Voltage (CSA)	60 V AC/DC
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC / 60 V DC
Rated Current*	4 A
Rated Current (CSA)*	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 20
Type of Connection	screw terminal
Maximum Wire Cross Section	max. 0,75 mm²
Cable Gland	PG9
Strain-Relief	clamping cage
Suitable Cables	Ø6 - Ø8 mm
Ambient Temperature (Operation)*	-25°C to +90°C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Contact Plating	Cu/Sn
Contact Bearer Material	PA
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-2
Housing Material	PA-GF
Housing Color	black
Flammability Class (Housing)	UL 94 V-0
Cable Gland Material	PA-GF
Cable Gland Gasket	CR, black
Attachment Material	GD-Zn
Attachment Plating	nickel-plated
O-Ring Material	FKM/NBR

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Device	Connector
Type	M12 \| Circular
