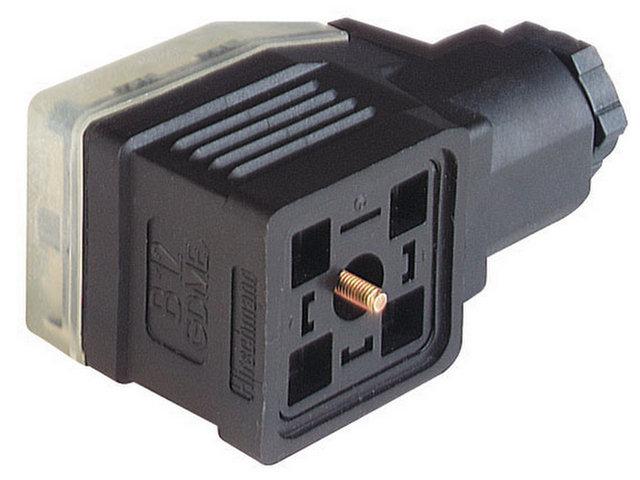

Valve Connector - Cube Female DIN43650-A - 3 Pole + Earth with Timer for Electronic Insert 2A 48VAC/24VDC PG11 IP65 4 - 11mm OD Cable Entry Black (933719100)
Timer Schwarz Cable Socket
Overview
Cable socket with times may be set independently of one another by means of potentiometer, 8 diff. Switching progr. With function indicator (LED) and integral protective wiring and gasket
Feature(s)
with Timer
Specifications
Number of Contacts : 3 + PE
Cable Gland : PG 11 (black)
Conductor size : Max. 1.5 mm²
Standard : DIN EN 175 301-803-A
Housing Color : Black, with transparent cover
Construction : Type A
Technical data
Pin dimensions : 6.3 mm x 0.8 mm, 4.8 mm x 0.8 mm
Rated voltage : AC 48 V / DC 24 V
Rated current : 2 A
Contact resistance :<= 4 mOhm
Type of termination : screw
Suitable cables : 4.5 mm to 11 mm diameter
Mounting : central nut
Material
Contact Surface Material : Sn
Contact Bearer Material : PA
Housing Material : PA
Environmental conditions
Protection class (IEC 60529) : IP 65 (gasket necessary)
Upgrade your connectivity with the GDME2011 TIMER BK, a versatile cable socket featuring a built-in timer and IP65 protection. Perfect for electronic applications, it boasts 8 programmable settings and a durable black housing, ensuring reliable performance in any environment. Enjoy easy installation and enhanced functionality with this robust connector that supports a wide range of cable sizes.
