H6B-SF-1L/SC-M20

Name: H6B-SF-1L/SC-M20 - Communica [Part No: H6B-SF-1L/SC-M20]
Brand: Wain
SKU: H6B-SF-1L/SC-M20
Price: 261.25 ZAR
Availability: InStock

SKU: H6B-SF-1L/SC-M20

BRAND: Wain

R 300.44_{(inc VAT)}
R 261.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Surface Housing

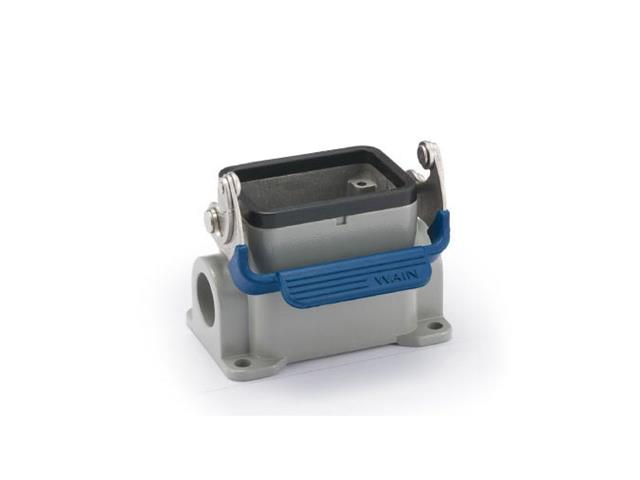

Surface housing high metal (56MM) W/1 Locking lever side entry for "6B" SER. M20 IP65

Surface housing high metal

Specifications

Technical Data

Series: Classic regular housing
Specifications: 6B
Housing type: Sealed lower housing
Outgoing method: Side outlet
Locking type: Single lock
Thread: M20
Housing material: Die casting aluminum
Housing color: RAL 7037 (field gray)
Surface treatment: Powder coating
Interlocking method: Metal elastic connection
Material: Stainless steel+TPR
Seals: NBR
Flame retardant rating as per UL94: V0
Working temperature: -40℃...+125℃
Protection rating: IP65

Additional Information

Device	Connector
Type	6B

Discover the H6B-SF-1L/SC-M20 surface housing, crafted from durable die-cast aluminum to ensure robust protection with an IP65 rating. This high-quality, flame-retardant housing features a secure locking lever for reliable side entry, making it perfect for demanding environments. Upgrade your installations with this versatile solution designed to withstand extreme temperatures from -40℃ to +125℃.
