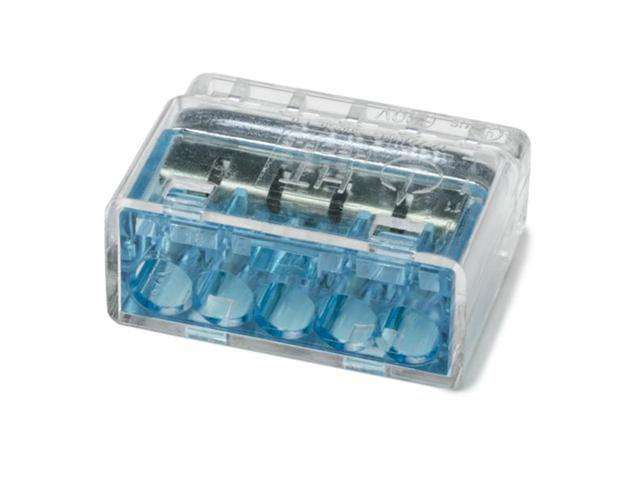

HELACON HECP5 BLUE

 Helacon Plus is a Unique Push-In Wire Connector with Double Spring Technology. Double Spring Design requires less Insertion Force and delivers Superior Retention values. Helps alleviate Repetitive Motion Injuries often Associated with Twist-on Style Connectors.

• Double Spring Technology requires Low Insertion Force yet Provides High Retention Values for Safe, Secure and Reliable Connections
• Unique Double Spring Design Accommodates both Solid and Stranded Wire Cores for Greater Versatility and an Accommodate Solid and Stranded Wires within same Housing
• Low Insertion Forces Reduces Buckling of Stranded Wire Separate Test Port for Fast, Easy Confirmation of Connection
• Quick Fit Insertion Relieves Installer in difficult Spots like Overhead Installations, Eliminates Twisting Motion and reduces Overall Assembly and Connection Time

• • • Max Current : 24 A
    • Max Voltage : 450 V
    • Number of Conductors : 5
    • Stripping Length : 11mm
    • Suitable for flexible core (Yes/No) : No
    • Suitable for multi wire core (Yes/No) : Yes
    • Suitable for solid core (Yes/No) : Yes
    • Short Description : HelaCon Plus Push-In Style Wire Connector, Double Spring, 5-Port, Polycarbonate, Blue in Colour
    • Wire Range (cULus) : 12 - 22 AWG solid and stranded copper wire
    • Wire Range (VDE) : 0.5 to 2.5mm² solid/stranded (max 7 cores)
    • Dimensions (mm) : 10.45(L)x24.20(W)x19.00(D)
    • Material and Specifications :
      • Material : Polycarbonate (PC)
      • Material Shortcut : PC
      • Flammability : UL94 V2
      • Halogenfree : Yes
      • Operating Temperature : -22 °F to +221 °F (-30 °C to +105 °C)
      • ROHS Conformity : Yes
      • Certification / Specification : DEMKO,FIMKO,KEMA-KEUR,VDE,ENEC,SEMKO,GL,NEMKO,cULus,MIL-STD-202G Method 215K
      • UL Listed (US and Canada): Yes
