MMF881A115

Name: MMF881A115 - Communica [Part No: MMF881A115]
Brand: Metz Connect
SKU: MMF881A115
Price: 609 ZAR
Availability: InStock

SKU: MMF881A115

BRAND: Metz Connect

In Stock
R 700.35_{(inc VAT)}
R 609.00_{(ex VAT)}

Collections: Connectors

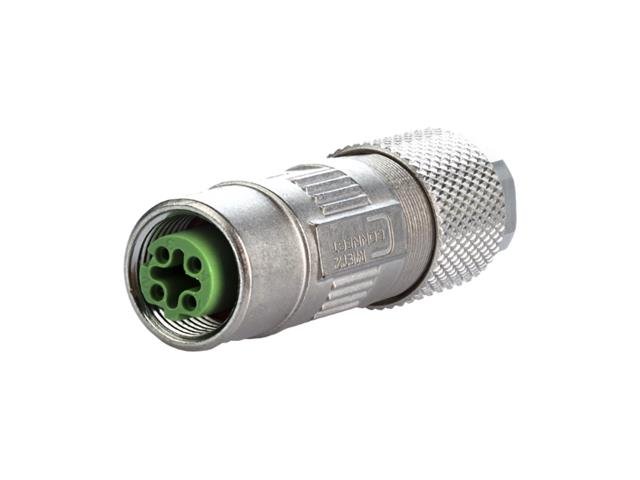

Circular Connector M12 D COD Shielded Cable Female 4 Pole IDT Connection 5 - 9,7mm Cable Entry

M12 D COD Shielded Cable Circular Connector

Termination	IDC
Fastening Type	Threaded
Orientation	D
Primary Material	Metal
Shell Material	Zinc Die Cast
Shell Finish	Nickel
Contact Finish - Mating	Nickel-Gold
Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Features	Backshell
Shielding	Unshielded
Current Rating (Amps)	4A
Voltage Rating	48VAC, 60VDC
Cable Opening	0.197" ~ 0.382" (5.00mm ~ 9.70mm)
Operating Temperature	-40°C ~ 85°C
Backshell Material, Plating	Zinc Die Cast, Nickel
Contact Material	Brass
Insert Material	Polyamide (PA), Nylon

Device	Connector
Type	M12 \| D COD \| Shielded Cable \| Circular
Mates With	MNF881A115 and all standard M12 'D' Code male Connectors
