MNF881A315-0001

Name: MNF881A315-0001 - Communica [Part No: MNF881A315-0001]
Brand: Metz Connect
SKU: MNF881A315-0001
Price: 921.53 ZAR
Availability: InStock

SKU: MNF881A315-0001

BRAND: Metz Connect

In Stock
R 1,059.76_{(inc VAT)}
R 921.53_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

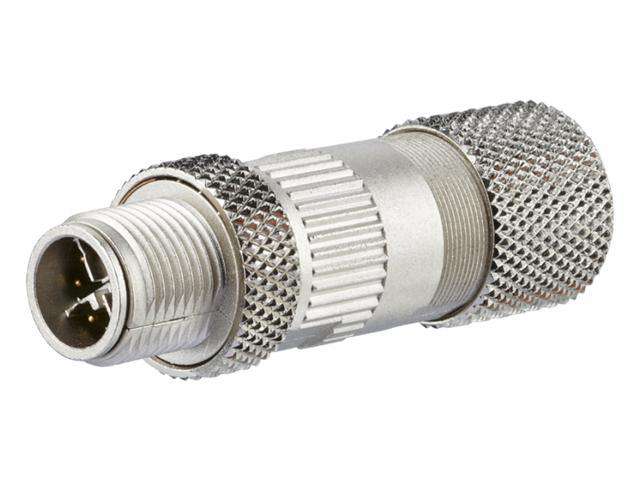

Circular Connector M12 X COD Cable Male 8 Pole IDT Connection 9mm Cable Entry Shieldable

Overview

Features

M12 Cat.6A X-coded plug based on IEC PAS 61076-2-109 and suitable for field assembly
Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
For a 8-wire M12 plug for AWG 22
Connection of AWG 26/1 - 22/1; AWG 26/7 - 22/7 possible
Solid copper wire diameter from 0.4 to 0.64 mm
Stranded copper wire diameter from 0.48 to 0.76 mm
Core diameter up to 1.6 mm
Cable jacket from 5.0 to 9.7 mm
Consists of only 2 parts
Easy assembly - connection without special tools
Zinc die-cast housing for industrial use

Specification
