MS3102A-20-27S

Name: MS3102A-20-27S - Communica [Part No: MS3102A-20-27S]
Brand: Communica
SKU: MS3102A-20-27S
Price: 270.44 ZAR
Availability: InStock

SKU: MS3102A-20-27S

BRAND: Communica

R 311.01_{(inc VAT)}
R 270.44_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

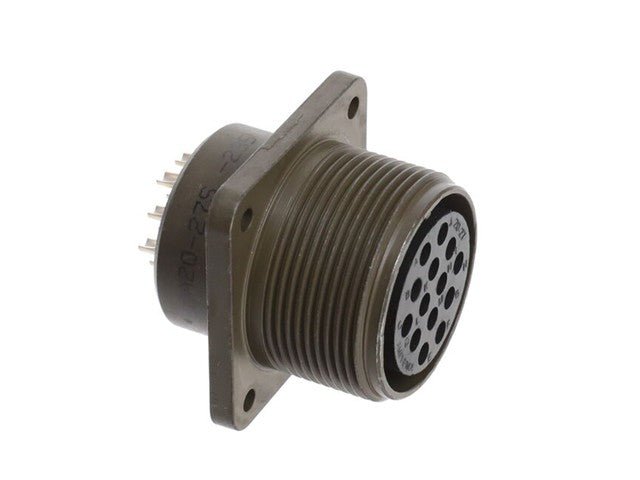

Circular Connnector MIL-DTL-5015 Style Screw Lock Square. Flange Panel Receptacle 14 Pole #16 Contacts. Female Solder. 13A 500VAC/700VDC (97-3102A-20-27S)

MIL-DTL-5015 Circular Connnector

Specifications

Number of Positions: 14
Grade: Military
Qualification: MIL-DTL-5015
Shell Size – Insert: 20-27
Mounting Type: Panel Mount
Mounting Feature: Flange
Termination: Solder Cup
Fastening Type: Threaded
Orientation: N (Normal)
Primary Material: Metal
Shell Material: Aluminum Alloy
Shell Finish: Olive Drab Chromate over Cadmium
Contact Finish – Mating: Silver
Color: Olive Drab
Shielding: Unshielded
Cable Opening: 1.125" (28.58mm)
Operating Temperature: -55°C ~ 125°C
Contact Material: Copper Alloy
Insert Material: Neoprene
Applications: Marine, Military
