MS3122E-18-32S

Name: MS3122E-18-32S - Communica [Part No: MS3122E-18-32S]
Brand: Souriau
SKU: MS3122E-18-32S
Price: 966 ZAR
Availability: InStock

SKU: MS3122E-18-32S

BRAND: Souriau

In Stock
R 1,110.90_{(inc VAT)}
R 966.00_{(ex VAT)}

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL 26482 Connectors

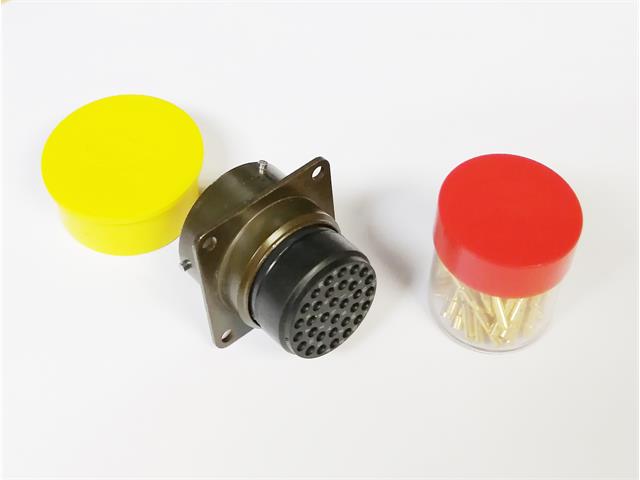

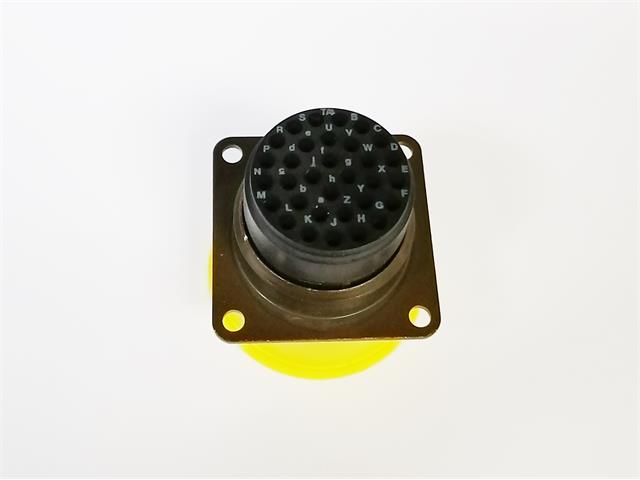

Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock Square Flange Panel Receptacle Female 32 Pole #20 Crimp Contact 7,5A 600VAC/850VDC(KPSE02E-18-32S)(PT02SE-18-32S)(85102R1832S50)

Circular Connector MIL-DTL-26482 Series

Specifications

Connector Type : Receptacle, Female Sockets
Number of Positions : 32
Shell Size - Insert : 18-32
Mounting Type : Panel Mount
Mounting Feature : Flange
Fastening Type : Bayonet Lock
Orientation : N (Normal)
Shell Material : Aluminum
Shell Finish : Olive Drab Chromate over Cadmium
Color : Olive Drab
Ingress Protection : Environment Sealed
Shielding : Unshielded
Current Rating (Amps) : 7.5A
Operating Temperature : -55°C ~ 125°C
Contact Material : Copper Alloy
Insert Material : Neoprene

Additional Information

Device	Connector
Type	Circular \| MIL-DTL-26482
