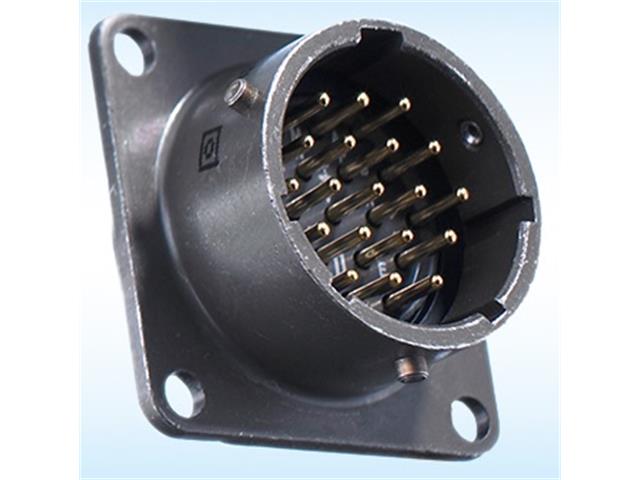

Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock Square Flange Panel Recept Female 41 Pole #20 Crimp Contact 7,5A 600VAC/850VDC(KPSE02E-20-41S)(PT02SE-20-41S)(85102R2041S50)
Circular Connector MIL-DTL-26482 Series
Specifications
Connector Type : Receptacle, Female Sockets
Number of Positions : 41
Size - Insert : 20-41
Mounting Type : Panel Mount
Mounting Feature : Flange
Termination : Crimp
Fastening Type : Bayonet Lock
Orientation : N (Normal)
Shell Material : Aluminum
Shell Finish : Olive Drab Chromate over Cadmium
Contact Finish - Mating : Gold
Color : Olive Drab
Ingress Protection : Environment Sealed
Shielding : Unshielded
Operating Temperature : -55°C ~ 125°C
Contact Material : Copper Alloy
Contact Finish Thickness - Mating
Insert Material : Neoprene
Applications : Aerospace, Industrial, Instrumentation, Mass Transit, Military
Additional Information
Device
Connector
Type
Circular | MIL-DTL-26482

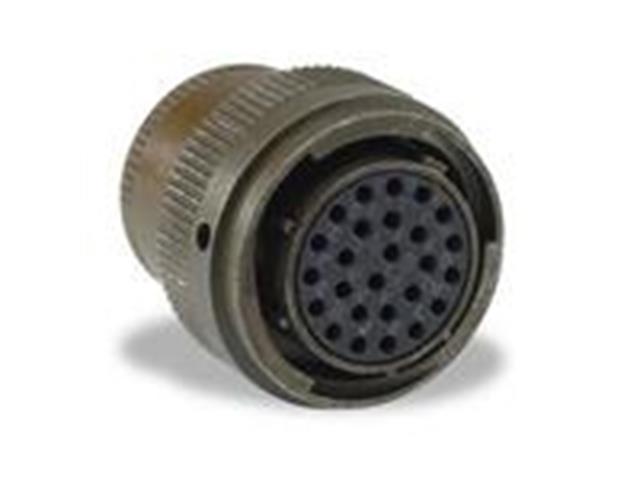

Enhance your connectivity with the MS3122E-20-41S circular connector, designed for reliability in aerospace and military applications. This 41-pole female receptacle features a durable aluminum shell, bayonet lock fastening, and crimp termination, ensuring secure and efficient performance in challenging environments. With an operating temperature range of -55°C to 125°C, it's built to withstand the toughest conditions. Upgrade your equipment with this high-quality, environment-sealed connector today!
