MS3122E-24-61P

Name: MS3122E-24-61P - Communica [Part No: MS3122E-24-61P]
Brand: Souriau
SKU: MS3122E-24-61P
Price: 1331 ZAR
Availability: InStock

SKU: MS3122E-24-61P

BRAND: Souriau

R 1,530.65_{(inc VAT)}
R 1,331.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL 26482 Connectors

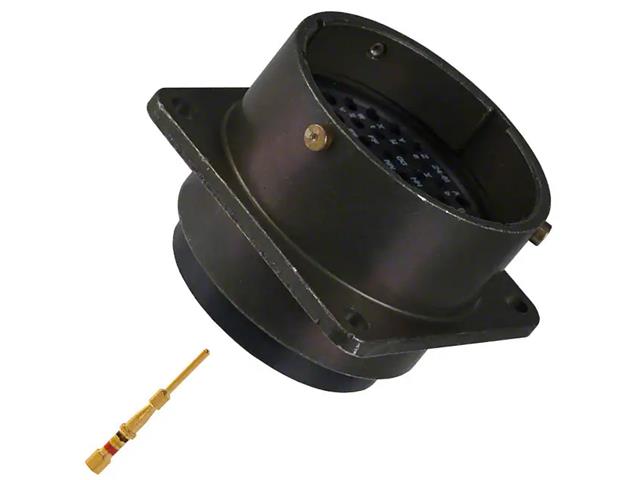

Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock Square Flange Panel Receptacle Male 61 Pole #20 Crimp Contact 7,5A 600VAC/850VDC(KPSE02E-20-41P)(PT02SE-24-61P)(85102R2461P50)

Circular Connector MIL-DTL-26482 Series

Specifications

Connector Type : Receptacle, Male Pins
Number of Positions : 61
Shell Size - Insert : 24-61
Mounting Type : Panel Mount
Mounting Feature : Flange
Termination : Crimp
Fastening Type : Bayonet Lock
Orientation : N (Normal)
Shell Material : Aluminum
Shell Finish : Olive Drab Chromate over Cadmium
Contact Finish - Mating : Gold
Color : Olive Drab
Ingress Protection : Environment Sealed

Features

Shielding : Unshielded
Current Rating (Amps) : 7.5A
Operating Temperature : -55°C ~ 125°C
Contact Material : Copper Alloy
Insert Material : Neoprene
Applications : Aerospace, Industrial, Instrumentation, Mass Transit, Military

Additional Information

Device	Connector
Type	Circular \| MIL-DTL-26482

Discover the MS3122E-24-61P Circular Connector, designed for reliable performance in aerospace and industrial applications. With 61 positions, a durable aluminum shell, and a secure bayonet lock, this male receptacle ensures optimal connectivity in demanding environments. Trust its 7.5A rating and environment-sealed design for long-lasting reliability. Upgrade your connections today!
