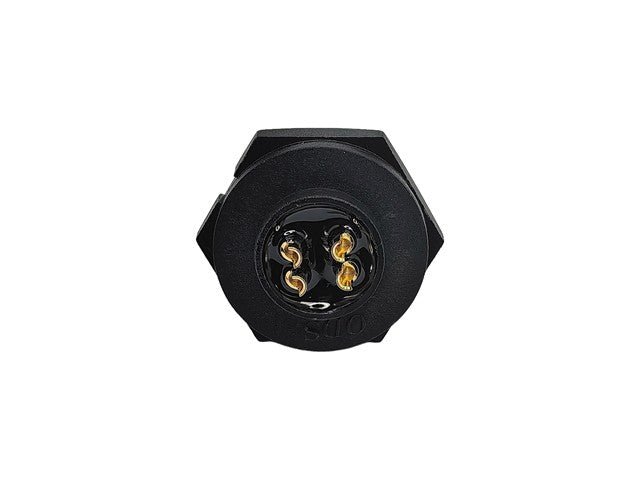

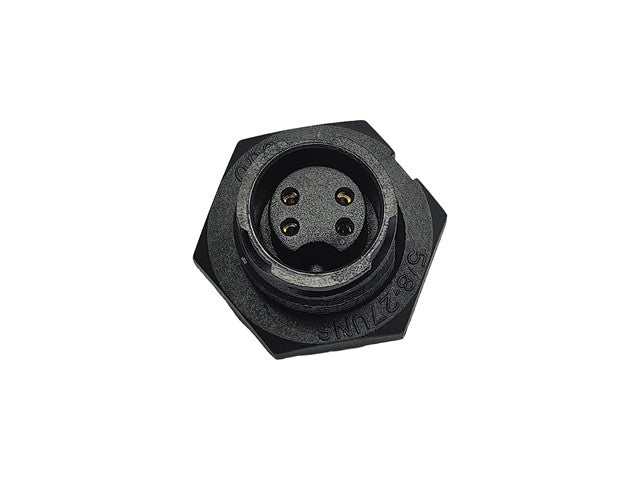

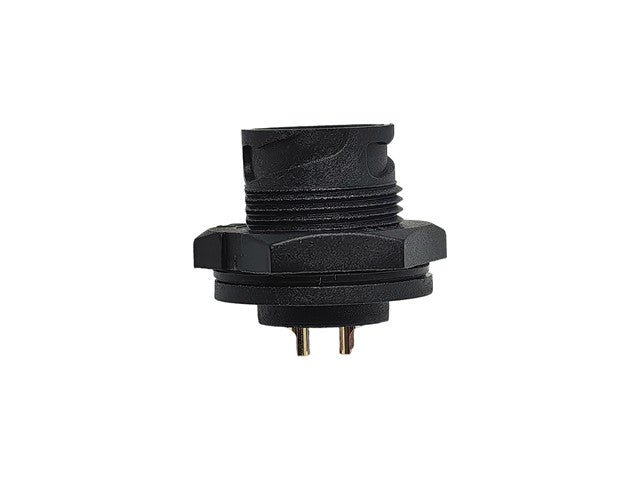

Circular Connector Plastic IP67 Waterproof Bayonet Lock Female Panel Receptacle 4 Pole 5A/250VAC - 15,6x14,8 Panel Cutout (5/8") -40 - 105°

Plastic IP67 Waterproof Circular Connector

Specifications

Product	Circular
Category	Standard (B) Size 5/8"-27UNS
Size	5/8"-27UNS
Connector Type	Receptacle Front Circular Seat
Connector Gender	Male
Contact/ Pin/ Terminal	Female
Number of positions	4Pin
Current Rating (Amp)	5A
Voltage Rating	250V
Locking System/ Mating Style	3-Point Bayonet Lock
Material- Lock Nut	Plastic
Material- Connector Body	Plastic
Cable Type	Data
Shield Type	Unshielded
Assemble Type/ Field Installable	Solder
IP Rating	IPX7

Additional Information

Device	Connector
Type	Plastic \| IP67 \| Waterproof \| Circular

Upgrade your connections with the PM04FCC-KCS7001 IP67 Waterproof Circular Connector. Designed for reliability, this 4-pole bayonet lock receptacle ensures secure, moisture-resistant performance, perfect for various applications. With a durable plastic build and a wide temperature range of -40 to 105°C, it offers exceptional value for all your connectivity needs.
