PT02E-14-15P

Name: PT02E-14-15P - Communica [Part No: PT02E-14-15P]
Brand: Amphenol
SKU: PT02E-14-15P
Price: 340 ZAR
Availability: InStock

SKU: PT02E-14-15P

BRAND: Amphenol

R 391.00_{(inc VAT)}
R 340.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL C 24682 Connectors

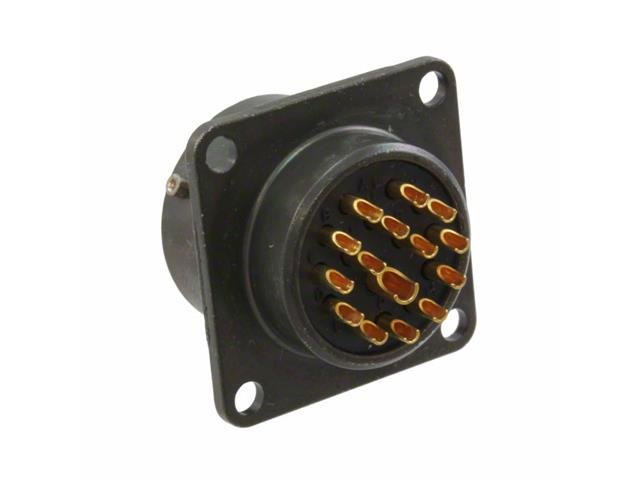

Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock Square Flange Receptacle Male 15 Pole 14* #20/1* #16 Contacts. Solder. 7,5A/22A 600VAC/850VDC (MS3112E-14-15P)(85102E1415P50)

MIL-DTL-26482 Circular Connector

Specifications

Primary Material	Metal
Connector Type	Receptacle, Male Pins
Number of Positions	15
Shell Material	Aluminum
Shell Finish	Olive Drab Chromate over Cadmium
Shell Size - Insert	14-15
Backshell Material / Plating	Aluminum, Olive Drab Cadmium
Insert Material	Neoprene
Contact Material	Copper Alloy
Contact Finish (Mating)	Gold
Mounting Type	Panel Mount
Mounting Feature	Flange
Termination	Solder Cup
Fastening Type	Bayonet Lock
Orientation	N (Normal)
Shielding	Unshielded
Ingress Protection	Environment Sealed
Qualification	MIL-DTL-26482 Series I
Mates with	PT06F-14-15S
Operating Temperature	-55°C to +125°C

Downloads

Additional Information

Device

Connector

Experience reliable connectivity with the PT02E-14-15P Circular Connector, featuring a robust 15-pole design and bayonet lock for secure connections. Ideal for demanding applications, this MIL-DTL-26482 compliant connector ensures optimal performance with 7.5A/22A ratings at 600VAC/850VDC. Upgrade your systems with this durable, solder-terminated solution that seamlessly mates with PT06F-14-15S.
