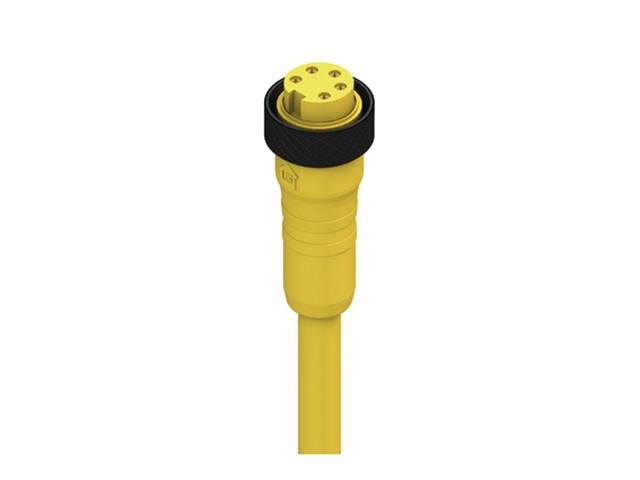

RK 50-877/5M
SKU: RK 50-877/5M
BRAND: Belden Lumberg
R 1,918.20 (inc VAT) R 1,668.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Cordset - Power 7/8" Female Stright. 5 Pole UL Single End - 5M Type Yellow Cable 5 x 1,5mm2 . Conductors 9,4mm OD. 8A 600VAC IP67
5 Pole Single Ended Cordset
Specifications
Product Family : Power
Product Sub Family : 7/8"
Connector Type : Cordset, single ended
Type of Contact / Gender : Female
Connector Design : straight
Number of Pins : 5
Coding : A
Shielding : Unshielded
Attachment Type : Coupling nut
Rated Voltage : 600 V
Rated Voltage (UL) : 600 V
Rated Current* : 8 A
Rated Current (UL)* : 8 A
Ambient Temperature (Operation) : - 30 °C - + 90 °C
Protection Degree / IP Rating : IP65, IP67, NEMA 6P
Contact Base Material : CuZn
Contact Plating : Au over Ag
Contact Bearer Material : TPU
Contact Bearer Color : Yellow
Molded Body Material : TPU
Molded Body Color : Yellow
Attachment Material : Al
Cable Number : 877
Conductor Size : 16 AWG (65/34)
Number of Wires : 5
Minimal Bending Radius (Flexible Inst) : ? 10 x D
Conductor material : Stranded, BC
Cable Jacket Material : TPE
Cable Jacket Color : Yellow
Cable Diameter D : Ø 9.4 mm
Wire Insulation Material : PVC-Nylon
Insulated Wire Diameter : Ø 2.5 mm
Ambient Temperature (Fixed Installation) : -30 °C to +90°C
UL Cable Type : TC-ER (90°C Dry / 75°C Wet) 600 V
Flammability Class (Cable Jacket) : FT4 / IEEC 1202
Cable Characteristics : Oil and Coolant, Vibration, UV, Abrasion, and Weld Spark resistant, Continuous Flex
Downloads
Additional Information
Device
Cordset
Type
5 Pole | Single Ended
Elevate your power connections with the RK 50-877/5M cordset, featuring a robust 7/8" female connector. With a durable yellow cable rated for 600V and 8A, it ensures reliable performance in extreme conditions (-30°C to +90°C). Ideal for demanding applications, its IP67 rating provides superior protection against dust and water, making it the perfect choice for your industrial needs.
