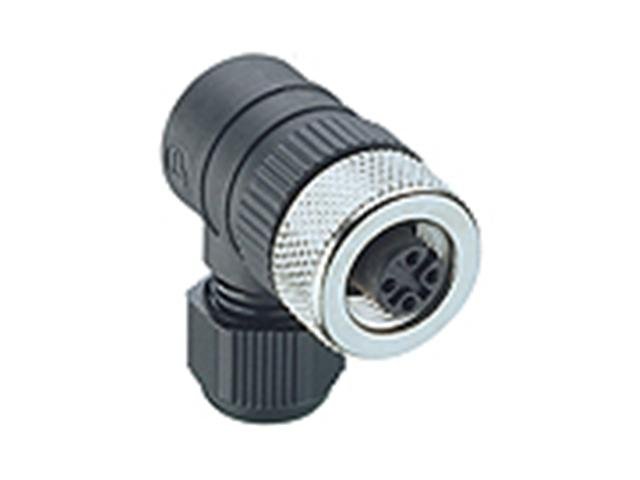

M12 Circular Connector, Female, Right Angle,
5 Pole, Screw Terminal, PG9 Cable Entry
Overview
- The Lumberg Automation RKCW 5/9 Female Right Angle M12 Field Wireable Connector has a 5 pin insert.
- The PG 9 cable entry accepts 4-8 mm cable.
- The body is black PBT with copper alloy contacts.
- It has a rated voltage of 63V and a nominal current of 4 A.
- Protection class IP 67.
Specifications
-
Dimensions- 35 mm Length x 20 mm Width x 37.5 mm Height (1.3" x 0.78" x 1.4")
-
Type of Contact- Female Right Angle
-
Number of Pins- 5
-
Rated Voltage- 63 V
-
Nominal Voltage- 60 V
-
Nominal Current- 4 Amps
-
Conductor Size- 0.75 mm2
-
Cable Diameter Range- 4-8 mm
-
Protection Class- IP 67 (Totally protected from dust & temporary immersion in water at a depth of 1 meter for 30 min) / NEMA 6P
-
Housing Material- PBT (Polybutylene terephthalate thermoplastic)
-
Insert Material- PBT (Polybutylene terephthalate thermoplastic)
-
Contact Material- CuZn (Brass) pre-coppered, CuSnZn (Copper-Tin-Zinc)
-
Receptacle Shell- CuZn (Brass), nickel plated
-
O-Ring Material- FKM (Fluro-Elastomer rubber)
-
Type of Connection- Screw Terminals
-
Contact Resistance- </= 5 mOhm
-
Insulation Resistance- > 109 Ohm
-
Operating Temperature- -25 C to 90 C (-13 F to 194 F)
Downloads
Additional Information
| Device |
CONNECTOR |
| Type |
M12 | FEMALE | RIGHT ANGLE |
The RKCW 5/9 Female Right Angle M12 Connector offers reliable, high-performance connectivity with its 5-pole, screw terminal design. Built for durability with IP67 protection, it withstands dust and water, making it perfect for demanding environments. Ideal for various applications, this connector ensures secure and efficient connections, enhancing your system's performance.
