RKMWV 4-225/2M

Name: RKMWV 4-225/2M - Communica [Part No: RKMWV 4-225/2M]
Brand: Belden Lumberg
SKU: RKMWV 4-225/2M
Price: 215.60 ZAR
Availability: InStock

SKU: RKMWV 4-225/2M

BRAND: Belden Lumberg

In Stock
R 247.94_{(inc VAT)}
R 215.60_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: E Series

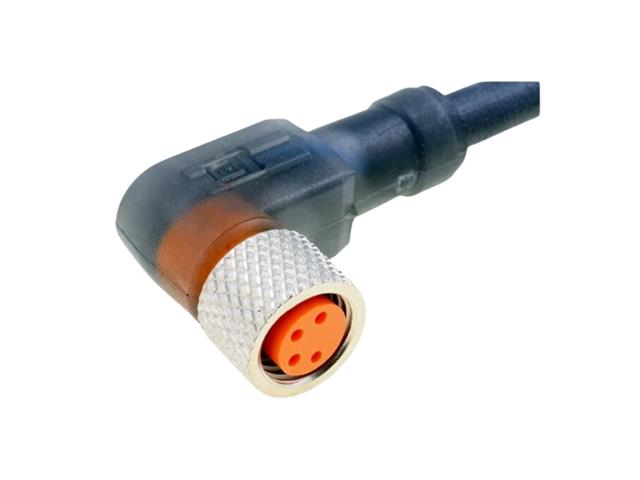

M8 Connector: Right Angle; Female; 4-PIN ; PUR cable with molded 4-pole female snap-in connector, 2m, 30 V/4 A, -40 to 90 °C, IP 65

Specifications

MECHANICAL SPECIFICATIONS:
Type of Contact / Gender: Female
Number of Pins: 4
Coding: A
Connector Design: Angled
Shielding: Unshielded
Mating Cycles: ≤ 100
Operating Voltage: 30 V AC/DC
Rated Current: 4 A
Rated Voltage: 30 V
Rated Impulse Voltage: 0.8 kV
Insulation Resistance: ˃ 10^9 Ohm
Attachment Type: Snap-Locking
Contact Base Material: CuSn
Contact Bearer Color: Orange
Contact Bearer Material: TPU
Contact Plating: With/Have
Cable Jacket Material: PUR
Cable Jacket Color: Black Matt similarly RAL 9005
Cable Length: 2 m
Cable Number: 225
Cable Diameter D: ø 4.70 ± 0.15 mm
Minimal Bending Radius: (Fixed Inst)˃ 5 x D
Minimal Bending Radius: (Flexible Inst)˃ 10 x D
Number of Wires: 4
Wire Insulation Material: PP
Insulated Wire Diameter: ø 1.30 ± 0.10 mm
Conductor material: Cu
Conductor Size: 0.34 mm²

ENVIRONMENTAL SPECIFICATIONS:
Ambient Temperature (Fixed Installation): - 50 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation): - 25 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Operation): - 40 °C - + 90 °C

Downloads

DATASHEET RKMW 4-225 2m

Additional Information

Device	CONNECTOR
Type	Right Angled M8 CONNECTOR
No. of Contacts	4
No. of Pins	4
