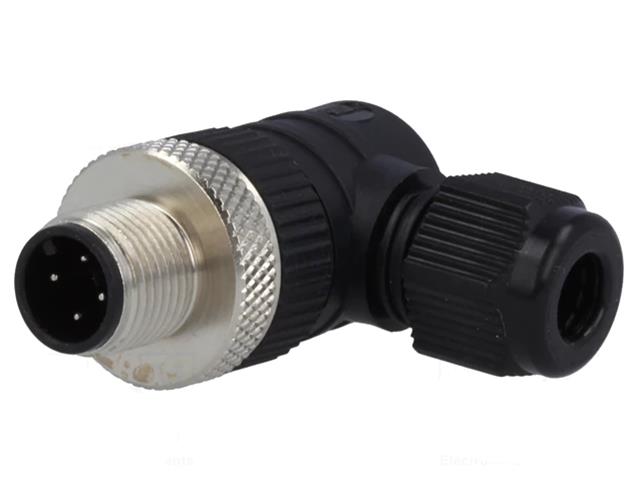

RSCW 4/7

SKU: RSCW 4/7

BRAND: Belden Lumberg

In Stock
R 222.53_{(inc VAT)}
R 193.50_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

Circular Connector M12 A COD Cable Male Right Angled 4 Pole Screw Terminal PG7 Cable Entry

M12 A COD Cable Male Circular Connector

Specifications

Connector type : Plug, right angle
Connector standard : Sensor connector
Connection side A : M12 plug, right angle
Connection side B : Customisable
No. of pins : 4
Nominal voltage : 250 V
Nominal current : 4 A
Nominal current - rounded value : 4 A
Connector cross-section (max.) : 0.75 mm²
Connection : Screws
Thread type connection side : M12
Thread type (wiring and installation) : PG7
Contact material : CuZn
Contact surface : Gold plated
IP rating : IP67
Min. temperature : -25 °C
Max. temperature : +90 °C
Seal type : Screw-on
Insulation Resistance : > 109 Ω
Nominal voltage (details) : 240 V
Nominal current (details) : 4 A
Test voltage : 2.0 kV/60 s
Thread type : M12
Contamination level : 3
Connector cross section : 0.75 mm²
Pins : 4
Connection : Screws
Cable diameter (details) : 3 mm
Cable diameter : 3 - 6.5 mm
Temperature range : -25 - +90 °C
Product type : Sensor/actuator connector

Downloads

Datasheet - RSCW 4/7

Additional Information

Device	Connector
Type	M12 \| A COD \| Cable \| Male \| Circular
