SV80M

Name: SV80M - Communica [Part No: SV80M]
Brand: Binder
SKU: SV80M
Price: 179.50 ZAR
Availability: InStock

SKU: SV80M

BRAND: Binder

R 206.43_{(inc VAT)}
R 179.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN Connectors

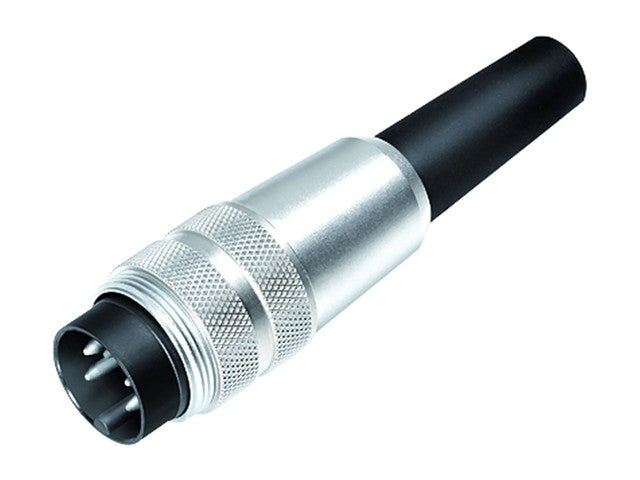

Circular Connector M16 Cable Male Striaght 8 Pole Screw Lock 6mm Cable Entry IP40

M16 Cable Male Circular Connector

Specifications

Connector design	Male cable connector
Type standard	DIN EN 61076-2-106
Version	Connector pin straight
Connector locking system	screw
Termination	solder
Degree of protection	IP40
Connection cross-section	0.75 mm² / AWG 18
Cable outlet	3.0-6.0 mm
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	19.42
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	500 V
Rated current	5.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	unshielded

Housing material	PA
Contact body material	PBT (UL94 V-0)
Contact material	CuZn (brass)
Contact plating	Ag (silver)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	a2d6e903-c5a5-46a7-82b6-c6167162bf22

Downloads

Datasheet - SV80M

Additional Information

Device

Connector

Discover the SV80M Inline DIN Circular Cable Plug Connector, designed for reliable performance with its 8-way solder termination and robust locking mechanism. Perfect for secure connections in various applications, it supports 60VAC at 5A and fits cables with a diameter of 4-6mm. Enhance your equipment's safety and efficiency with this durable, IP40-rated connector.
