XY3106A-20-16S

Name: XY3106A-20-16S - Communica [Part No: XY3106A-20-16S]
Brand: Amphenol
SKU: XY3106A-20-16S
Price: 388.38 ZAR
Availability: InStock

SKU: XY3106A-20-16S

BRAND: Amphenol

R 446.64_{(inc VAT)}
R 388.38_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

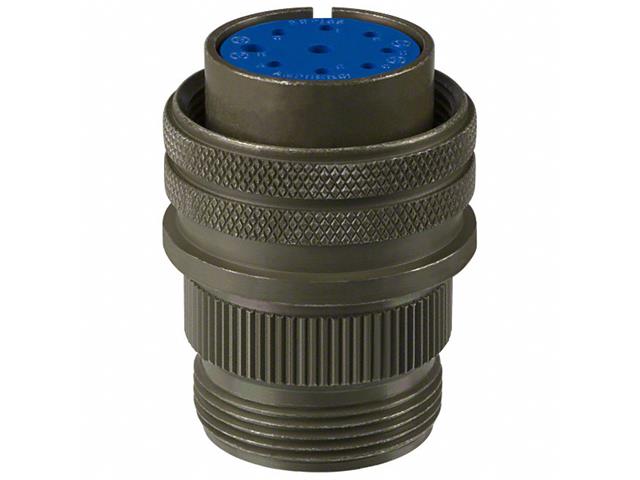

Circular Conector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 9 Pole 7x #16/2x #12 Contacts. Female Solder. 13A/23A 500VAC/700VDC (MS3106A20-16S)(97-3106A-20-16S)

MIL-DTL-5015 Circular Conector

Specifications

RoHS:	N
Number of Positions:	9 Position
Contact Gender:	Socket (Female)
Insert Arrangement:	20-16
Product:	Plugs
Shell Size:	20
Shell Style:	In-Line
MIL Type:	MIL-DTL-5015
Termination Style:	Solder
Mounting Style:	Free Hanging
Current Rating:	13 A, 23 A
Contact Plating:	Silver
Contact Material:	Copper Alloy
Series:	MS 5015
Brand:	Amphenol Industrial
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Qualification:	EREL
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Zinc
Subcategory:	Circular Connectors
Tradename:	5015
Wire Gauge:	14 AWG to 12 AWG, 22 AWG to 16 AWG

Additional Information

Device	Conector
Type	MIL-DTL-5015 \| Circular

Upgrade your connections with the XY3106A-20-16S Circular MIL-DTL-5015 Connector. This robust 9-position female solder plug offers superior durability and reliability for high-performance applications, supporting up to 23A and 700VDC. Crafted from high-quality aluminum alloy with silver-plated copper contacts, it ensures optimal conductivity and longevity, making it the ideal choice for demanding environments.
