XY3106A-22-4S

Name: XY3106A-22-4S - Communica [Part No: XY3106A-22-4S]
Brand: Xytron
SKU: XY3106A-22-4S
Price: 979 ZAR
Availability: OutOfStock

SKU: XY3106A-22-4S

BRAND: Xytron

Sold Out
R 1,125.85_{(inc VAT)}
R 979.00_{(ex VAT)}

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

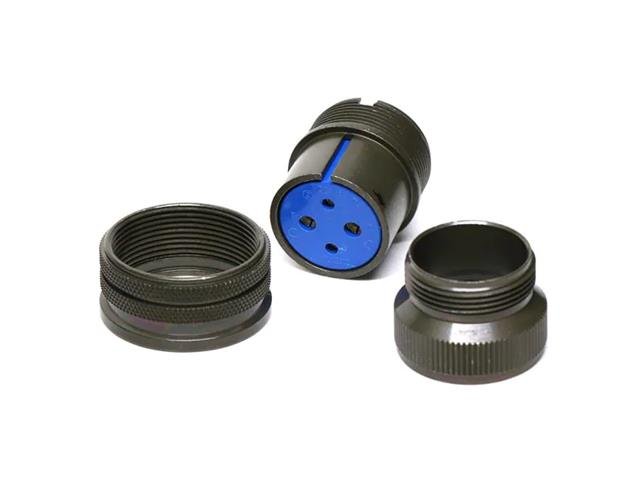

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 4 Pole 2x #12/2x #8 Conactst. Female Solder. 23A/46A 500VAC/700VDC (MS3106A22-4S)(97-3106A-22-4S)

MIL-DTL-5015 Circular Connector

Specifications

RoHS:	N
Number of Positions:	4 Position
Contact Gender:	Socket (Female)
Insert Arrangement:	22-04
Product:	Plugs
Shell Size:	22
Shell Style:	In-Line
MIL Type:	MIL-DTL-5015
Termination Style:	Solder
Mounting Style:	Free Hanging
Current Rating:	23 A, 46 A
Contact Plating:	Silver
Contact Material:	Copper Alloy
Series:	MS 5015
Brand:	Amphenol Industrial
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Zinc
Subcategory:	Circular Connectors
Tradename:	5015
Wire Gauge:	10 AWG to 8 AWG, 14 AWG to 12 AWG

Additional Information

Device	Connector
Type	MIL-DTL-5015 \| Circular

Upgrade your connectivity with the XY3106A-22-4S Circular Connector, designed for robust performance in demanding environments. This MIL-DTL-5015 compliant connector features a secure screw lock and is perfect for 4-pole applications, supporting up to 46A and 700VDC. Made with durable aluminum alloy and silver-plated contacts, it ensures reliable connections and longevity, making it ideal for military and industrial use.
