XY3106A-24-12P

Name: XY3106A-24-12P - Communica [Part No: XY3106A-24-12P]
Brand: Amphenol
SKU: XY3106A-24-12P
Price: 1063 ZAR
Availability: OutOfStock

SKU: XY3106A-24-12P

BRAND: Amphenol

Sold Out
R 1,222.45_{(inc VAT)}
R 1,063.00_{(ex VAT)}

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

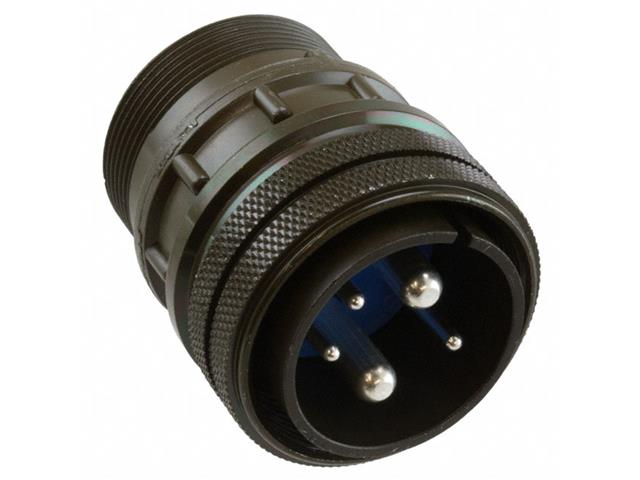

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 5 Poles 3x #12/2x #4 Contact Male Solder 46A/80A 500VAC/700VDC (MS3106A24-12P)(97-3106A-24-12P)

Circular Connector MIL-DTL-5015 Style

Additional Information

Device	Connector
Type	Screw Lock \| Cable End Plug \| Optional Cable Clamp \| 5 Poles
Highlights	Suitable Cable Clamp/Bush - XY3057/3420-16A
Gender	Male
No. of Pins	5
Mates With	XY3102A -24-12S
Locking System	Screw Lock
Termination	Solder
Electrical Rating	46A/80A 500VAC/700VDC

Upgrade your connectivity with the XY3106A-24-12P Circular Connector. This durable, screw-lock cable end plug features 5 poles for reliable performance, handling up to 80A at 700VDC. Ideal for secure, high-power applications, it ensures safe and efficient connections.
