DHA HAC-HFW1500CMP-A 2.8MM
SKU: DHA HAC-HFW1500CMP-A 2.8MM
BRAND: Dahua
R 569.25 (inc VAT) R 495.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Dahua Starlight HDCVI Bullet Camera 5MP 2.8mm Fixed Lens, 30M IR, 1/2.7 inch CMOS, Build-In MIC, MAX Res:2880x1620, CVI/CVBS/AHD/TVI, M12, BLC/HLC/DWDR, 2D NR, DWDR, Max 25fps@5MP, IP67, DC12V, 166×69x70mm, 0,33kg
Starlight HDCVI Bullet Camera 5MP
Feature(s)
Max 25 fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
3.6 mm fixed lens (2.8 mm optional)
Max. IR length 30m, Smart IR
Built-in mic(-A)
IP67, 12V DC

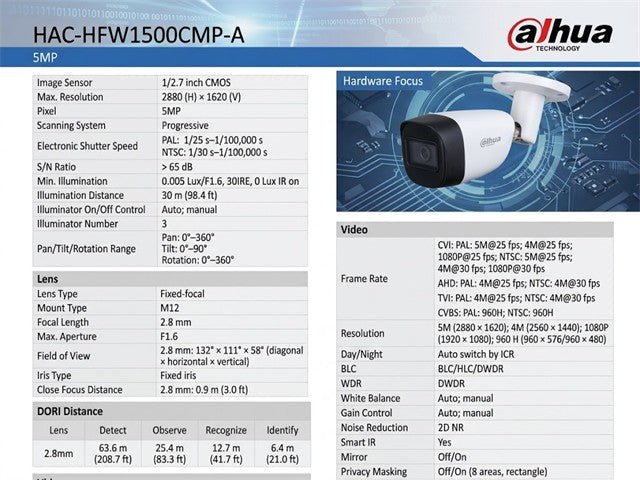

Specifications
Camera
Image Sensor : 1/2.7 inch CMOS
Max. Resolution : 2880 (H) × 1620 (V)
Pixel : 5MP
Scanning System : Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio : > 65 dB
Min. Illumination : 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance : 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number : 3
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type : Fixed-focal
Mount Type : M12
Focal Length : 2.8 mm
Max. Aperture : F1.6
Field of View : 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)
Iris Type : Fixed iris
Close Focus Distance : 2.8 mm: 0.9 m (3.0 ft)
DORI Distance
Lens : 2.8mm
Detect : 63.6 m (208.7 ft)
Observe : 25.4 m (83.3 ft)
Recognize : 12.7 m (41.7 ft)
Identify : 6.4 m (21.0 ft)
Video
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night : Auto switch by ICR
BLC : BLC/HLC/DWDR
WDR : DWDR
White Balance : Auto; manual
Gain Control : Auto; manual
Noise Reduction : 2D NR
Smart IR : Yes
Mirror : Off/On
Privacy Masking : Off/On (8 areas, rectangle)
Port
Audio Interface : One channel built-in mic (-A)
Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply : 12V ±30% DC
Power Consumption : Max 3.7W (12V DC, IR on)
Environment
Operating Temperature : –40°C to +60°C (–40°F to 140°F); < 95% (non- condensation)
Storage Temperature : –40°C to +60°C (–40°F to 140°F); < 95% (non- condensation)
Protection Grade : IP67
Structure
Casing : Metal throughout the whole casing
Camera Dimensions : 166.6 mm × 69.7 mm × 70.0 mm(6.56" × 2.75" × 2.75")
Net Weight : 0.33 kg (0.73 lb)
Gross Weight : 0.43 kg (0.95 lb)
Downloads
Additional Information
Device
Camera
Type
5MP | Starlight | HDCVI | Bullet
Experience unparalleled security with the DHA HAC-HFW1500CMP-A 2.8MM Bullet Camera. Featuring a 5MP resolution, 30M IR night vision, and built-in microphone, this weatherproof camera ensures crystal-clear surveillance day and night. Perfect for both indoor and outdoor use, it provides reliable monitoring with easy installation and multiple video output options. Elevate your security system with this advanced, versatile camera today!
