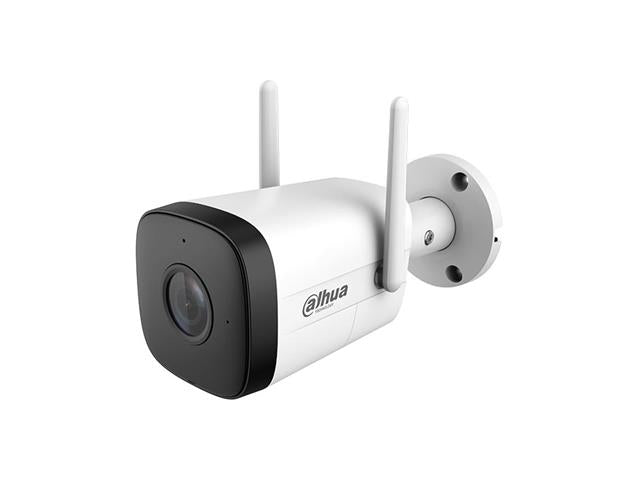

Dahua WiFi Bullet IP Camera 4MP 2.8mm Lens, 30m IR, 1/3" CMOS, Smart H.265+; Smart H.264+, Built-in Dual-Antenna 2.4G WIFI Upto 150m, DWDR, 3D NR, BLC, Motion Detection, Video Tampering, Audio detection, IP67. Built-in MIC and Speaker
4 MP IR Fixed-focal WiFi Bullet Network Camera
Overview
Driven by industry-leading technology, Dahua Wi-Fi series network
cameras are highly precise and easy to install, producing high-quality
images. They have strong Wi-Fi connection capabilities and do not
require network cables, eliminating the need for a professional
construction team. This series of cost-effective cameras support SD card
storage, and are dustproof and waterproof. They are ideal for small and
medium-sized scenes such as retail stores, homes, and other small and
medium-sized enterprises.
Feature(s)
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440) @20 fps, and max.supports 3 MP (2304 × 1296) @25 fps/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, and the max. illumination distance is 30 m.
- SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.
- Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 120 m in an open area.
- Supports max.256 G Micro SD card. Built-in MIC and speaker.
- 12 VDC power supply.
- IP67 protection.
Specifications
Camera
- Image Sensor : 1/3" CMOS
- Max. Resolution : 2560 (H) × 1440 (V)
- ROM : 16 MB
- RAM : 64 MB
- Scanning System : Progressive
- Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s Min. Illumination:
- 0.03 Lux@F2.0 (Color, 30 IRE)
- 0.003 Lux@F2.0 (B/W, 30 IRE)
- 0 lux (Illuminator on)
- S/N Ratio : > 56 dB
- Illumination Distance 30 m (98.43 ft)
- Illuminator On/Off Control : Auto; Manual
- Illuminator Number 1 (IR LED)
- Pan/Tilt/Rotation Range Pan
- 0°–360°
- Tilt: 0°–78°
- Rotation: 0°–360°
Lens
- Lens Type : Fixed-focal
- Lens Mount : M12
- Focal Length : 2.8 mm
- Max. Aperture : F2.0
- Field of View : 2.8 mm : Horizontal: 90°; Vertical: 50°; Diagonal: 107° Iris Control Fixed
- Close Focus Distance : 2.8 mm: 1.0 m (3.28 ft)
DORI Distance
- Lens : 2.8 mm
- Detect : 68.0 m (223.10 ft)
- Observe : 27.2 m (89.24 ft)
- Recognize : 13.6 m (44.62 ft)
- Identify : 6.8 m (22.31 ft)
Video
- Video Compression : H.264B; H.264; H.264H; H.265
- Smart Codec Smart : H.265+; Smart H.264+
- Video Frame Rate
- Main stream:
- Sub stream:
- 640 × 480@(1–25 fps)
- 640 × 480@(1–30 fps)
- *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Stream Capability : 2 streams
- Resolution : 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296);
- 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 ×
- 720)
- Bit Rate Control : CBR/VBR
- Video Bit Rate
- H264: 24 kbps–4096 kbps
- H265: 9 kbps–4096 kbps
- Day/Night : Auto (ICR)/Color/B/W
- BLC : Yes
- WDR : DWDR
- White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control : Auto
- Noise Reduction : 3D NR
- Motion Detection : OFF/ON (4 areas, rectangular)
- Smart Illumination : Yes
- Image Rotation : 0°/180°
- Mirror : Yes
Audio
- Built-in MIC : Yes
- Built-in Speaker : Yes
- Audio Compression : G.711a; G.711Mu
Alarm
- Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change; SMD (human)
Network
- Network Port : RJ-45 (10/100 Base-T)
- Wi-Fi : IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G
- Wireless Range : Up to 120 m (The performance varies based on
- actual environment)
- SDK and API : Yes
- Cyber Security :
- Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
- Network Protocol : IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
- Interoperability : ONVIF (Profile S/Profile T); CGI; P2P
- User/Host : 6 (Total bandwidth: 36 M)
- Storage : Micro SD card (support max. 256 GB) Browser
- Management Software Smart PSS; DSS; DMSS
- Mobile Client iOS; Android
Power
- Power Supply : 12 VDC
- Power Consumption :
- Basic: 2 W (12 VDC)
- Max. (H.265 + IR intensity): 6.1 W (12 VDC)
Environment
- Operating Temperature : –30 °C to +60 °C (–22 °F to +140 °F)
- Operating Humidity : ≤ 95%
- Storage Temperature : –30 °C to +60 °C (–22 °F to +140 °F)
- Protection : IP67
Structure
- Casing :
- Inner core: Metal + Plastic
- Cover: Plastic
- Product Dimensions : Ø109.9 mm × 102.2 mm (Ø4.33" × 4.02")
- Net Weight : 350 g (0.77 lb)
- Gross Weight : 588.1 g (1.30 lb)
Downloads
Additional Information
| Device |
Camera |
| Type |
4 MP | IR | Fixed-focal | WiFi | Bullet | Network |
