HKD PWM DC MOTOR CONT 10A 12-40V - Motors, Motor Drivers & Controllers -

HKD PWM DC MOTOR CONT 10A 12-40V

Name: HKD PWM DC MOTOR CONT 10A 12-40V - Communica [Part No: HKD PWM DC MOTOR CONT 10A 12-40V]
Brand: Communica
SKU: HKD PWM DC MOTOR CONT 10A 12-40V
Price: 48.70 ZAR
Availability: InStock

SKU: HKD PWM DC MOTOR CONT 10A 12-40V

BRAND: Communica

In Stock
R 56.01_{(inc VAT)}
R 48.70_{(ex VAT)}

Collections: 3D Printing & Accessories, DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: DC Motor Speed Controller, Iot

10A Speed Controller/PWM Speed Controller/12V-40V 10A Speed Controller

12V-40V 10A Speed Controller

Specifications

The input supply voltage range is 12V-40VDC.
Power: 0.01-400w
frequency is 13khz
PWM pulse width speed range: 10% - 100%
Incorporate a 10A fuse, and with reverse connection power supply protection function.
Product specification:
Size: 60 * 55 * 28mm, the distance between the four positioning holes and the edge of the plate is 5mm, and the diameter of the positioning hole is 3.2mm.
Weight: 69g

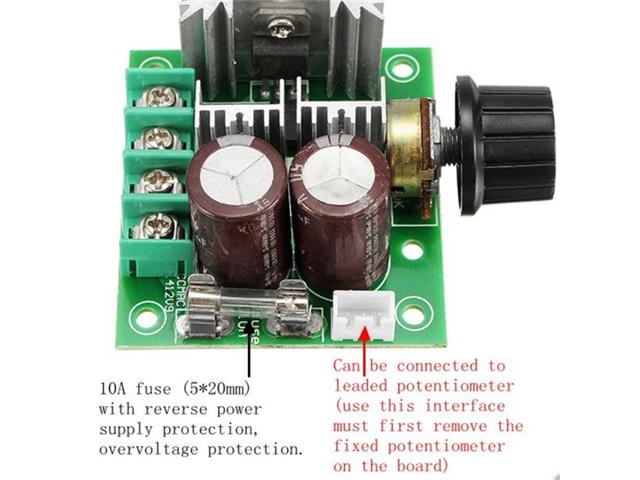

On board 10A fuse with standard size of 5 * 20mm

Additional Information

Device

Speed Controller
