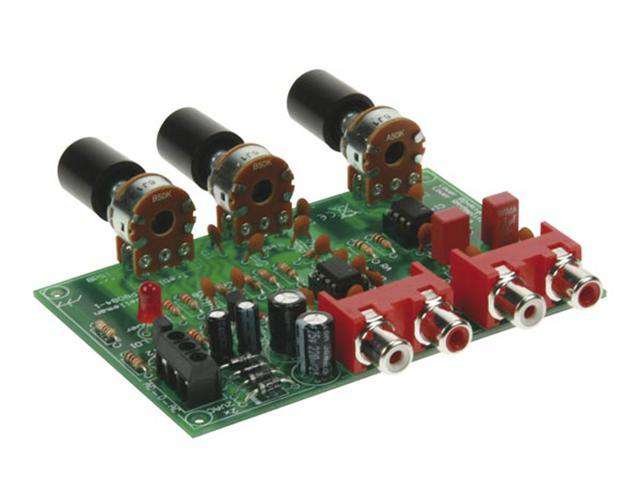

Preamplifier – Volume and Tone Control Kit
• Function Group : Audio / Amplifiers etc.
Overview
This kit comes complete with all input / output connections and potentiometers. Furthermore it is possible to amplify or attenuate the input signal.
Features
- Stereo volume control
- Stereo Baxandall bass and treble control
- Bass and Treble potentiometers with centre click
- Customizable attenuation or amplification
- Complete with knobs
Specification
- Supply Voltage : 2 x 12VAC / 100mA
- Frequency response : 3Hz - 500kHz (-3dB)
- Standard amplification : x1
- Signal to noise ratio: 98dB
- Harmonic distortion: < 0.005% (@1KHz)
- Maximum output: 5V _x000D_ RMS
- Tone control:
- + and -15dB @ 20Hz
- + and -15dB @ 15kHz
- Input impedance: 50k _x000D_ ohms
- PCB dimensions: 105 x 70mm
Enhance your audio experience with the VELLEMAN K8084 Preamplifier Kit, featuring stereo volume and tone control. This customizable kit allows you to fine-tune bass and treble for optimal sound quality, ensuring exceptional audio clarity. Perfect for DIY enthusiasts, it comes complete with all necessary connections and knobs for easy installation. Elevate your sound system effortlessly!
