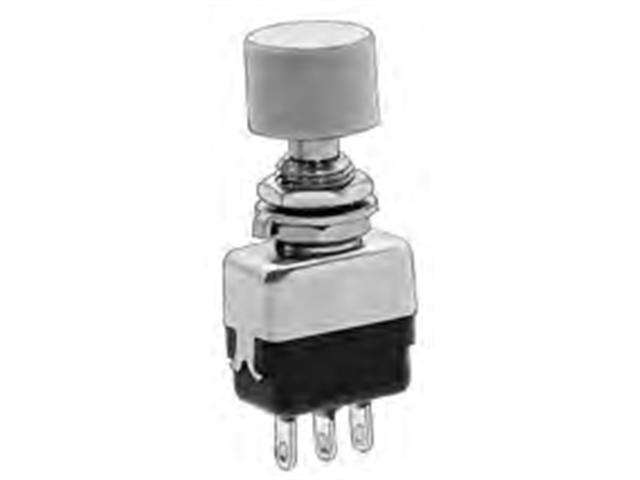

13445AK

• PC and panel mount models
• Bushing Ø 6,35 (1/4) and 11,9 (15/32)
• UL and CECC approved

Electrical Specifications

• Max. current/voltage rating with resistive load : 4A 30VDC
• Minimum load : 10mA 50mV, 10µA 5V min.
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength
• 1.000 Vrms 50 Hz min. between terminals
• 2.000 Vrms 50 Hz min. between poles and between terminals and frame
• Contact bounce : 2 ms max.
• Electrical life
• Max. current/voltage rating : 4A 30VDC
• Cycles : 50.000

General Specifications

• Torque : 1,25 Nm max. applied to nut
• Standard Panel Thickness : 2 mm
• Total Travel : 2 mm
• Operating Temperature : -40°C to 85°C
