1FK7084-2AF71-1CH1-Z -J25 - Industrial Automation - 67635795951916

1FK7084-2AF71-1CH1-Z -J25

Name: 1FK7084-2AF71-1CH1-Z -J25 - Communica [Part No: 1FK7084-2AF71-1CH1-Z -J25]
Brand: Siemens
SKU: 1FK7084-2AF71-1CH1-Z -J25
Price: 93170 ZAR
Availability: OutOfStock

SKU: 1FK7084-2AF71-1CH1-Z -J25

BRAND: Siemens

Sold Out
R 107,145.50_{(inc VAT)}
R 93,170.00_{(ex VAT)}

Collections: Electromechanical, Weight 10+

Type: Industrial Automation

Category: SIMOTICS S Synchronous motor

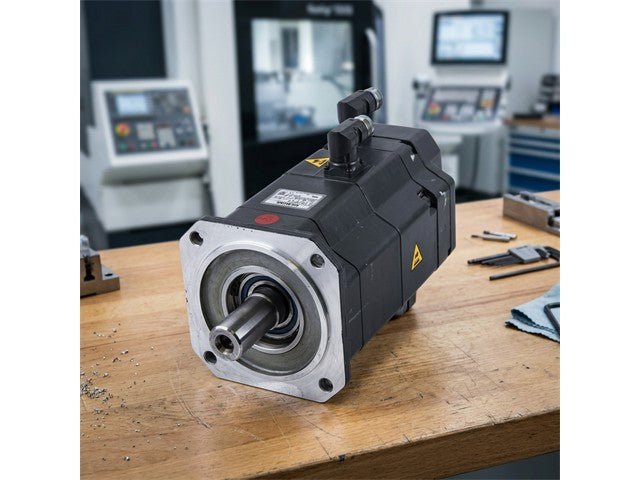

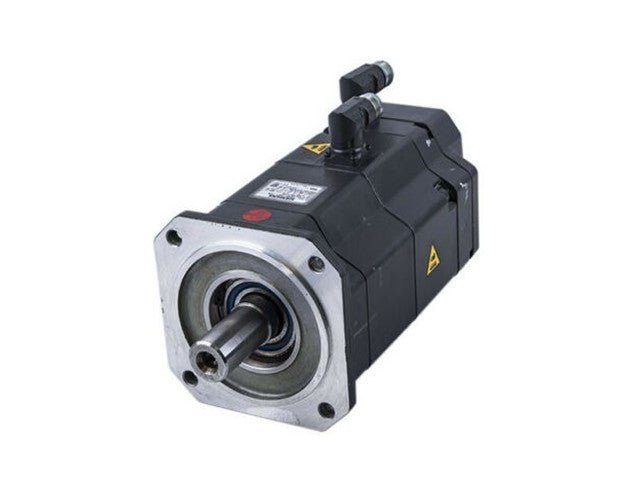

SIMOTICS S synchronous motor 1FK7-CT PN=3.1kW; UDC=600V M0=20Nm (100K); NN=3000rpm

SIMOTICS S synchronous motor

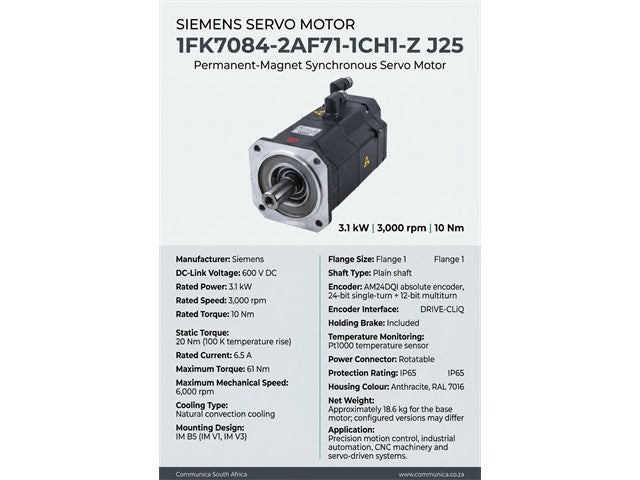

Specifications

Manufacturer: Siemens
Model / Part Number: 1FK7084-2AF71-1CH1-Z J25
Product Type: Permanent-Magnet Synchronous Servo Motor
Rated Power: 3.1 kW
DC-Link Voltage: 600 V DC
Rated Speed: 3,000 rpm
Rated Torque: 10 Nm
Static Torque: 20 Nm (100 K temperature rise)
Rated Current: 6.5 A
Maximum Torque: 61 Nm
Maximum Mechanical Speed: 6,000 rpm
Cooling Type: Natural convection cooling
Mounting Design: IM B5 (IM V1, IM V3)
Flange Size: Flange 1
Shaft Type: Plain shaft
Encoder: AM24DQI absolute encoder, 24-bit single-turn + 12-bit multiturn
Encoder Interface: DRIVE-CLiQ
Holding Brake: Included
Temperature Monitoring: Pt1000 temperature sensor
Power Connector: Rotatable
Protection Rating: IP65
Housing Colour: Anthracite, RAL 7016
Net Weight: Approximately 18.6 kg for the base motor; configured versions may differ
Application: Precision motion control, industrial automation, CNC machinery and servo-driven systems

Downloads

Datasheet

Additional Information

Device	Motor
Type	SIMOTICS \| S \| synchronous \| motor

Experience precision and efficiency with the Siemens SIMOTICS S synchronous motor 1FK7084-2AF71-1CH1-Z J25. With a powerful 3.1 kW output and a maximum speed of 6,000 rpm, this motor is perfect for industrial automation and CNC applications. Its robust design, featuring a built-in holding brake and IP65 protection, ensures reliability and longevity in demanding environments. Upgrade your motion control systems today!
