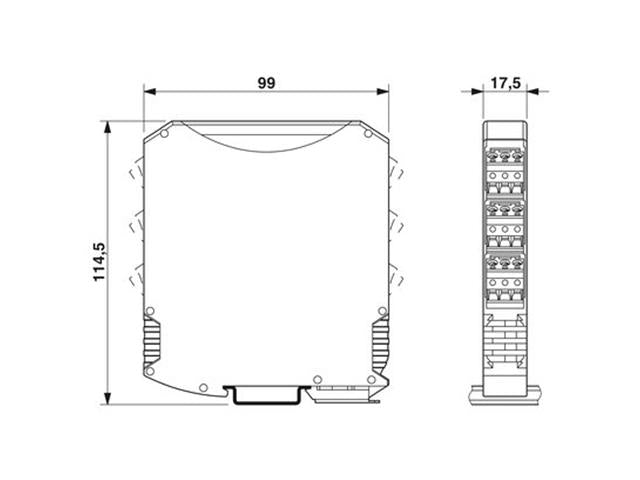

RAD-DOR4-IFS Radioline I/O Extension Module
Radioline I/O Extension Module
Specifications
| Electrical isolation |
300 V (Rated insulation voltage (in each case between the digital outputs // TBUS supply, reinforced insulation in accordance with EN/IEC 61010)) |
| 300 V (Rated insulation voltage (to adjacent devices, basic insulation in accordance with EN/IEC 61010)) |
| Test voltage for digital I/Os |
2.5 kV AC (50 Hz, 1 min.) |
| Maximum power dissipation for nominal condition |
1.32 W |
| Transient surge protection |
Yes |
| Supply |
| Supply voltage range |
19.2 V DC ... 30.5 V DC (DIN rail connector) |
| Max. current consumption |
≤ 55 mA (At 24 V DC, at 25°C) |
Output data
| Digital |
| Output name |
Relay output |
| Number of outputs |
4 |
| Contact type |
Changeover contact |
| Contact material |
AgSnO2
|
| Maximum switching voltage |
250 V AC/DC |
| Min. switching current |
≥ 10 mA |
| Max. switching current |
5 A (250 V AC) |
| 0.168 A (250 V DC) |
| 5 A (24 V DC) |
| Mechanical service life |
1x 107 cycles |
| Electrical service life |
1x 105 cycles (At 5 A, 250 V AC, ohmic) |
| 2x 105 cycles (At 2 A, 250 V AC, cosφ 0.4) |
| 2x 105 cycles (At 1 A, 24 V DC, L/R = 48 ms) |
| Maximum switching frequency |
2 Hz |
| Switching capacity |
120 W (24 V DC) |
| 120 W (30 V DC) |
| 20 W (48 V DC) |
| 18 W (60 V DC) |
| 22 W (110 V DC) |
| 40 W (220 V DC) |
| 42 W (250 V DC) |
| 1250 VA |
| Behavior of the outputs (adjustable via DIP switch) |
Hold / Reset |
Connection data
| Tightening torque |
0.5 Nm ... 0.6 Nm |
| 5 lbf-in. ... 7 lbf-in. |
| Connection method |
Screw connection |
| Stripping length |
7 mm |
| Conductor cross section solid min. |
0.2 mm² |
| Conductor cross section solid max. |
2.5 mm² |
| Conductor cross section flexible min. |
0.2 mm² |
| Conductor cross section flexible max. |
2.5 mm² |
| Conductor cross section AWG min. |
24 |
| Conductor cross section AWG max. |
14 |
LED signaling
| Status display |
Green LED (supply voltage, PWR) |
| Green LED (bus communication, DAT) |
| Red LED (periphery error, ERR) |
| Yellow LED (digital output, DO1) |
| Yellow LED (digital output, DO2) |
| Yellow LED (digital output, DO3) |
| Yellow LED (digital output, DO4) |
Material specifications
| Material |
PA 6.6-FR |
| Flammability rating according to UL 94 |
V0 |
Environmental and real-life conditions
| Ambient conditions |
| Degree of protection |
IP20 |
| Ambient temperature (operation) |
-40 °C ... 70 °C (>55°C derating, see technical documentation) |
| -40 °F ... 158 °F (>131°F derating, see technical documentation) |
| Ambient temperature (storage/transport) |
-40 °C ... 85 °C |
| -40 °F ... 185 °F |
| Altitude |
2000 m |
| Permissible humidity (operation) |
20 % ... 85 % |
| Permissible humidity (storage/transport) |
20 % ... 85 % |
| Shock |
16g, 11 ms |
| Vibration (operation) |
in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
Additional Information
| Device |
Extension Module |
| Type |
Radioline I/O |
Enhance your automation setup with the RAD-DOR4-IFS Radioline I/O Extension Module. This reliable module offers electrical isolation, robust surge protection, and four versatile relay outputs, ensuring seamless connectivity and optimal performance. Designed for tough environments, it operates within extreme temperatures and high humidity, making it perfect for industrial applications. Upgrade your system’s efficiency and reliability today!
