3RK1205-0BQ00-0AA3
SKU: 3RK1205-0BQ00-0AA3
BRAND: Siemens
R 3,882.40 (inc VAT) R 3,376.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

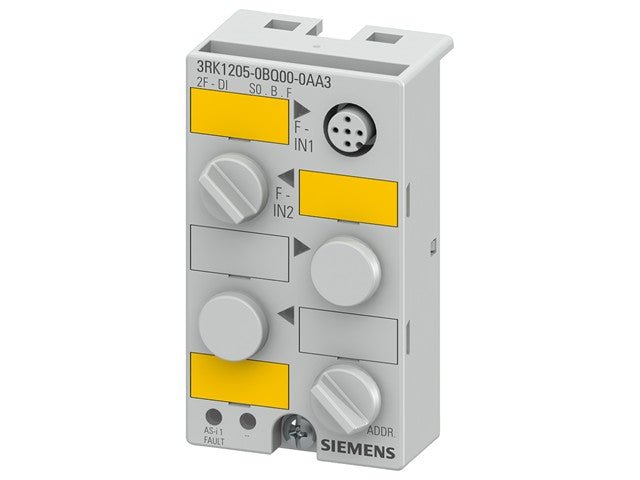

ASIsafe Compact Module K45F Digital Safety, 2 F-DI, IP67 2 x Input For Mechanical Sensors 2 x M12 Socket
ASIsafe Compact Module K45F Digital Safety
Specifications
Description: AS-Interface safety compact module (K45F), 2 safe digital inputs (F-DI), IP67 enclosure, 2 M12 I/O sockets; mounting plate (3RK1901-2EA00 or 3RK1901-2DA00) sold separately
Product Lifecycle: PM300 – Active product
Operating Voltage: AS-Interface specification: 26.5 – 31.5 V DC
AS-Interface Total Current: Max. 45 mA
Inputs: 2 safety-related digital inputs (mechanical switching contacts). “High” when contact closed; “Low” when open. Minimum input current: 5 mA
I/O Connection: 2 I/O sockets; M12 screw terminals
Addressing: Front addressing socket
Status Indicators: Yellow LEDs for I/O status; Green/Red LEDs for AS-Interface and diagnostics
Ambient Temperature: Operation: –25 °C to +70 °C; Storage: –40 °C to +85 °C
Protection Class: IP67 – dust-tight, protected against temporary immersion
Dimensions: Width: 45 mm; Height: 80 mm; Depth: 34 mm
Mounting: DIN-rail or wall mounting via appropriate plate for K45 modules
Certifications: EMI/EMV approval, maritime application confirmation, and other environmental confirmations according to Siemens
Downloads
Additional Information
Device
Module
Type
ASIsafe | Compact | Module | K45F | Digital | Safety
Enhance your safety systems with the ASIsafe Compact Module K45F. This IP67-rated digital safety module features 2 reliable F-DI inputs for mechanical sensors, ensuring robust performance in demanding environments. With easy mounting options and superior protection, it's the perfect solution for your industrial automation needs.
