3RT2017-1BB41
SKU: 3RT2017-1BB41
BRAND: Siemens
R 887.80 (inc VAT) R 772.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00
Power Contactor, AC-3E/AC-3, 12 A, 5.5 KW / 400 V, 3-Pole, 24 V DC, Auxiliary Contacts: 1 NO,
Power Contactor
Specifications

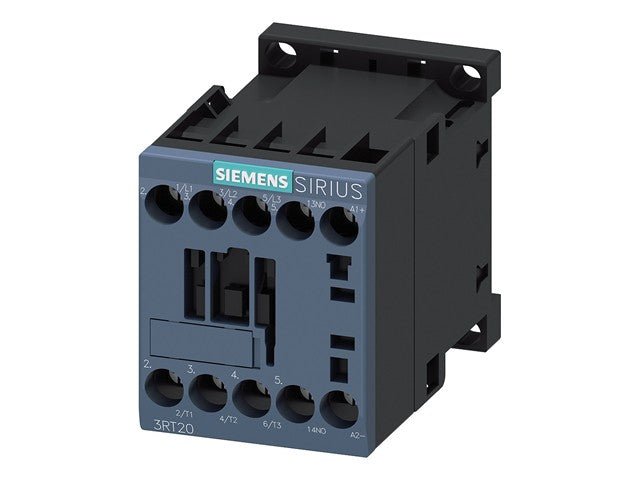

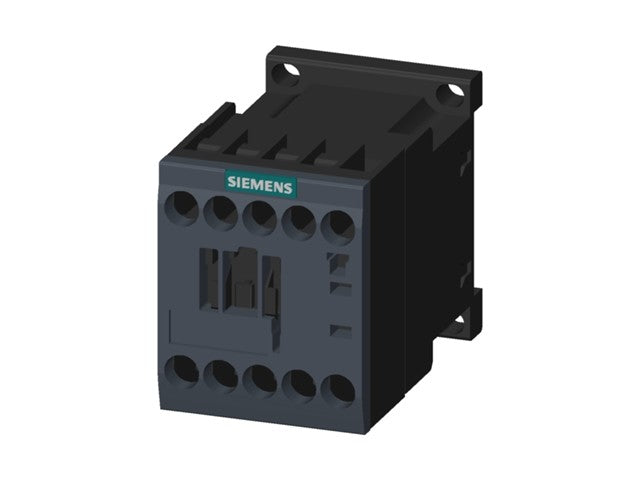

Product: Siemens SIRIUS Power Contactor
Model Number: 3RT2017-1BB41
Series: SIRIUS 3RT2
Contactor Size: S00
Number of Poles (Main Contacts): 3-pole
Main Contact Configuration: 3 NO (normally open)
Auxiliary Contacts (Built-in): 1 NO
Rated Operational Current (AC-3): 12 A @ 400 V AC
Rated Operational Power (AC-3): 5.5 kW @ 400 V AC
Rated Operational Current (AC-1): 22 A @ 400 V AC
Control / Coil Voltage: 24 V DC
Terminal Type: Screw terminals
Connection Type (Main Circuit): Screw connection
Mounting Method: DIN rail (35 mm) or panel mounting
Protection Class (Front): IP20
Rated Insulation Voltage (Ui): 690 V
Impulse Withstand Voltage (Uimp): 6 kV
Power Loss (Typical): Approx. 1.5 W total
Mechanical Service Life: Approx. 30,000,000 switching cycles
Electrical Service Life (AC-3): Approx. 1,000,000 operations
Operating Temperature: –25 °C to +60 °C
Storage Temperature: –55 °C to +80 °C
Shock Resistance: Up to 11 g (depending on waveform)

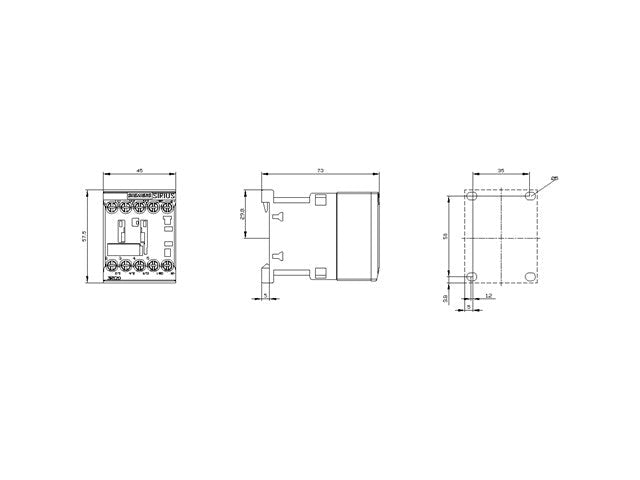

Dimensions (W × H × D): Approx. 45 × 73 × 58 mm
Weight: Approx. 0.29 kg
Standards / Compliance: IEC / EN 60947-4-1, UL, CSA, CE
Downloads
Additional Information
Device
Contactor
Type
Power | Contactor
Elevate your electrical control systems with the Siemens SIRIUS Power Contactor 3RT2017-1BB41. Designed for reliable performance, this 3-pole contactor handles up to 12 A and 5.5 kW at 400 V, ensuring efficient operation in various applications. With a robust mechanical lifespan of 30 million cycles and easy DIN rail installation, it’s the perfect choice for durability and convenience in your projects.
