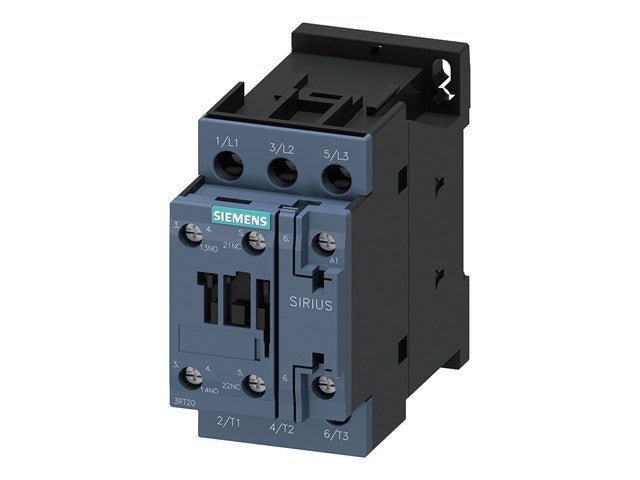

3RT2027-1AP00

SKU: 3RT2027-1AP00

BRAND: Siemens

In Stock
R 2,275.85_{(inc VAT)}
R 1,979.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Contactor

Power Contactor, AC-3E/AC-3, 32 A, 15 KW / 400 V, 3-Pole, 230 V AC, 50 HZ, Auxiliary Contacts: 1 NO + 1 NC, Screw Terminal, Size: S0

Power Contactor

Specifications

Product brand name: SIRIUS
Product designation/type: Power contactor, series 3RT2
Size of contactor: S0
Main contacts: 3-pole, 3 NO contacts
Auxiliary contacts: 1 NO + 1 NC (integrated)
Rated current (AC-3) at 400 V: 32 A
Rated current (AC-3) at 500 V: 32 A
Rated current (AC-3) at 690 V: 21 A
Rated current (AC-1) at 400 V (40 °C): 50 A
Rated current (AC-1) up to 690 V (40 °C): 50 A
Rated current (AC-1) up to 690 V (60 °C): 42 A
operating current for ~200 000 cycles (AC-4) at 400 V: 12 A
Insulation voltage (rated value): 690 V
Surge voltage resistance (rated): 6 kV
Protection class: IP20 (front and terminals)
Ambient temperature (operation): –25 °C to +60 °C
Ambient temperature (storage): –55 °C to +80 °C
Weight: 0.421 kg

Downloads

Datasheet

Additional Information

Device	Contactor
Type	Power \| Contactor
