3RV2021-1FA15

Name: 3RV2021-1FA15 - Communica [Part No: 3RV2021-1FA15]
Brand: Siemens
SKU: 3RV2021-1FA15
Price: 1525.61 ZAR
Availability: OutOfStock

SKU: 3RV2021-1FA15

BRAND: Siemens

Sold Out
R 1,754.45_{(inc VAT)}
R 1,525.61_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Electric Motors

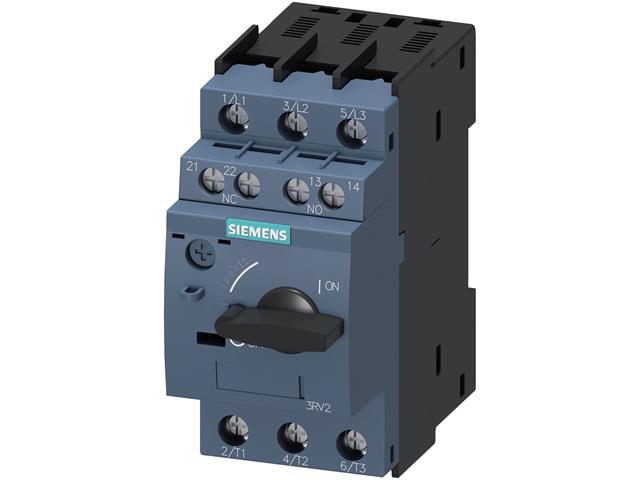

SIRIUS Circuit Breaker Size S0 for Motor Protection, CLASS 10 A-release 3.5...5 A N release 65 A Screw Terminal Standard Switching Capacity with Transverse Auxiliary Switches 1 NO+1 NC

SIRIUS Circuit Breaker Size S0

Specifications

Manufacturer: Siemens;
Part Number: 3RV2021-1FA15;
Product Family: SIRIUS 3RV2;
Module Type: Motor Protection Circuit Breaker (MPCB);
Frame Size: S0;
Number of Poles: 3-pole;
Rated Current Setting Range: 3.5–5 A;
Short-Circuit Release (N-release): 65 A;
Rated Operational Voltage: 20–690 V AC;
Rated Insulation Voltage: 690 V;
Trip Class: Class 10;
Auxiliary Contacts: 1 NO + 1 NC (integrated);
Terminal Type: Screw terminals;
Breaking Capacity: Up to 100 kA;
Power Loss: Approx. 7.25 W;
Mechanical Life: Approx. 100,000 operations;
Electrical Life: Approx. 100,000 operations;
Mounting Type: DIN rail or panel mounting;
Degree of Protection: IP20;
Operating Temperature Range: −20 °C to +60 °C;
Dimensions (Approx.): 97 × 45 × 97 mm;
Weight (Approx.): 0.37 kg;
Typical Application: Protection of small three-phase motors against overload and short circuit;

Downloads

Datasheet

Additional Information

Device	Circuit Breaker
Type	SIRIUS \| Circuit \| Breaker \| Size \| S0

Protect your motors with the SIRIUS 3RV2021-1FA15 Circuit Breaker, designed for reliable performance and safety. With a CLASS 10 A-release and a robust switching capacity, it ensures optimal operation and peace of mind. Upgrade your system with this essential device for superior motor protection.
