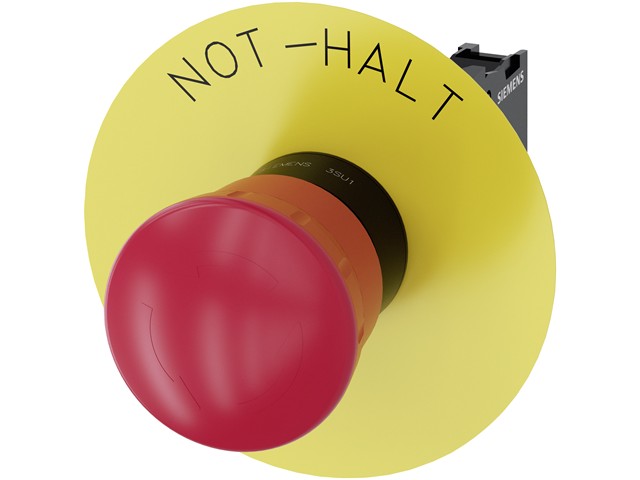

EMERGENCY STOP mushroom-type actuator, 22 mm, round, plastic, red, 40 mm, positive latching, according to EN ISO 13850, rotate-to-unlatch, with yellow backing plate,
EMERGENCY STOP
Specifications
Manufacturer: Siemens
Series: SIRIUS ACT (3SU11)
Product Type: Emergency stop mushroom pushbutton
Model Number: 3SU1100-1HB20-1CH0
Function & Operation
Emergency STOP pushbutton with positive latching
Release Method: Twist (rotate-to-unlatch)
Designed for emergency shutdown and safety circuits
Complies with emergency stop safety standards
Actuator Details
Mounting Diameter: 22 mm
Actuator Type: Mushroom head
Actuator Diameter: 40 mm
Actuator Color: Red
Background Plate Color: Yellow
Material: Plastic
Electrical Specifications
Contact Configuration: 1 NC (Normally Closed)
Contact Type: SPST-NC
Rated Voltage: Up to 500 V AC/DC
Rated Current: Up to 10 A
Mechanical Specifications
Terminal Type: Screw terminals
Protection Rating: IP66
Net Weight: ~0.08 kg
Standards & Compliance
Standard: EN ISO 13850 (Emergency stop devices)
Suitable for: Industrial control panels and machinery safety applications
Ensure safety in your workspace with the 3SU1100-1HB20-1CH0 Emergency Stop actuator. This durable, red mushroom-type button features a 22 mm round design and positive latching for reliable performance. Compliant with EN ISO 13850, its rotate-to-unlatch function and yellow backing plate enhance visibility and accessibility, making it an essential safety solution for any industrial setting.
