3UL2305-1A

Name: 3UL2305-1A - Communica [Part No: 3UL2305-1A]
Brand: Siemens
SKU: 3UL2305-1A
Price: 4973 ZAR
Availability: InStock

SKU: 3UL2305-1A

BRAND: Siemens

R 5,718.95_{(inc VAT)}
R 4,973.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Industrial Automation

Category: Residual-Current Transformer

Residual-Current Transformer For Residual Current Monitoring Bushing Opening 105 Mm Residual Current 30 Ma...40 A

Residual-Current Transformer

Specifications

Parameter: Value

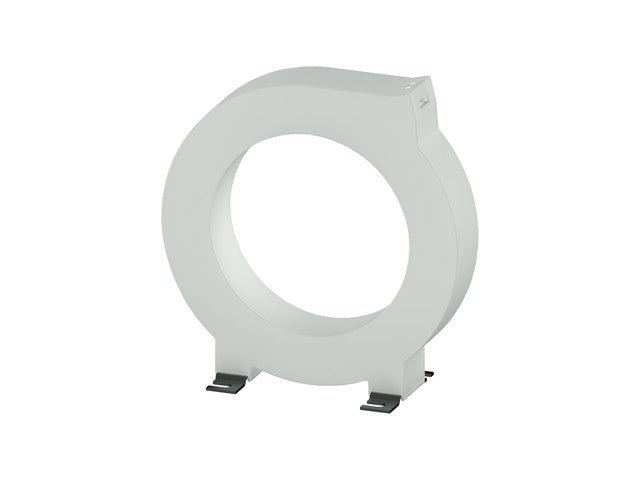

Product: Siemens 3UL2305-1A Residual-Current Transformer
Bushing Opening: 105 mm
Fault Current Range: 30 mA – 40 A
Operating Voltage: ≤ 690 V
Continuous Current: 400 A per phase
Surge Withstand: 6 kV
Secondary Terminals: Screw-type
Safe Touch Protection: Yes
Ambient Temp (Op/Stor): –25 °C to +60 °C / –40 °C to +85 °C
Humidity (Operation): ≤ 95 %
Installation Altitude: ≤ 2,000 m
Dimensions (W×H×D): 163 × 64 × 169 mm
Weight: ~0.476 kg
Terminals Torque: 0.5–0.6 N·m (4.4–5.3 lbf·in)
Standards / Approvals: IEC, DIN, EN compliant

Downloads

Datasheet

Additional Information

Device	Transformer
Type	Residual-Current

Enhance your electrical safety with the Siemens 3UL2305-1A Residual-Current Transformer. Designed for precise residual current monitoring, it features a 105 mm bushing opening and operates within a fault current range of 30 mA to 40 A. With robust protection against surges and a wide temperature range, this transformer ensures reliable performance in any environment. Trust in Siemens for superior quality and safety in your electrical systems.
