631H

Name: 631H - Communica [Part No: 631H]
Brand: Apem
SKU: 631H
Price: 155 ZAR
Availability: InStock

SKU: 631H

BRAND: Apem

R 178.25_{(inc VAT)}
R 155.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Toggle Switches

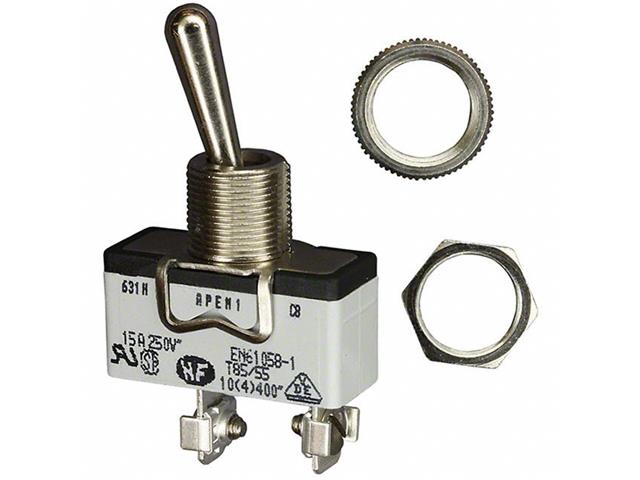

Apem Hi Quality/ Reliability Metal Lever Toggle Switch Single Pole SPST On -Off. Screw Terminal. 15A/250VAC(12VDC) 10A/24VDC VDE Approved

Hi Quality/ Reliability Metal Lever Toggle Switch

Specifications

Electrical Specifications

Max. Current/Voltage Ratings : see tables below
Peak Current : 30A max. during 1/2 sine, 250VAC
Initial Contact Resistance : 10 mΩ max.
Insulation Resistance : 1.000 MΩ min. at 500VDC
Dielectric Strength :

2.000 Vrms 50 Hz min. between terminals
2.500 Vrms 50 Hz min. between terminals and frame

Electrical life : 10.000 cycles at full load

General Specifications

Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
Panel Thickness : 4,5 mm (.177) max. between 2 nuts
Operating Temperature : -20°C to +55°C

Downloads

Datasheet - 600H

Additional Information

Device	Switch
Type	Hi Quality/ Reliability \| Metal Lever \| Toggle
Transition Style	Momentary
Actuator Style	Toggle
Termination	Screw
Switch Circuit	SP ON-OFF
Electrical Rating	15A 250VAC
No.of Poles/Pins	1

Elevate your projects with the 631H Metal Lever Toggle Switch, designed for reliability and durability. With a robust 15A/250VAC rating, this SPST switch ensures smooth on-off control for various applications. Its high-quality construction guarantees longevity, making it the perfect choice for both DIY enthusiasts and professionals alike.
