631H/2
631H/2 - Switches -
631H/2
631H/2 - Switches -

631H/2

SKU: 631H/2

BRAND: Apem


In Stock
R 184.00 (inc VAT)
R 160.00 (ex VAT)

Collections: Electromechanical

Type: Switches

Category: Toggle Switches

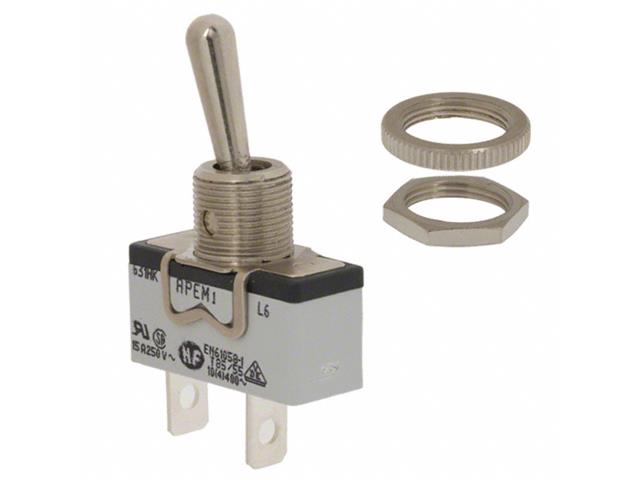

Apem Hi Quality/ Reliability Metal Lever Toggle Switch Single SPST Pole On -Off. Spade/Solder Terminal. 15A/250VAC(12VDC) 10A/24VDC VDE Approved

Hi Quality/ Reliability Metal Lever Toggle Switch Single

Specifications

Electrical Specifications

  • Max. Current/Voltage Ratings : see tables below
  • Peak Current : 30A max. during 1/2 sine, 250VAC
  • Initial Contact Resistance : 10 mΩ max.
  • Insulation Resistance : 1.000 MΩ min. at 500VDC
  • Dielectric Strength :
    • 2.000 Vrms 50 Hz min. between terminals
    • 2.500 Vrms 50 Hz min. between terminals and frame
  • Electrical life : 10.000 cycles at full load

General Specifications

  • Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
  • Panel Thickness : 4,5 mm (.177) max. between 2 nuts
  • Operating Temperature : -20°C to +55°C

Downloads

Additional Information

Device Switch
Type Hi Quality/ Reliability | Metal Lever | Toggle
Transition Style Momentary
Actuator Style Toggle
Termination Solder Lug
Switch Circuit SP ON-OFF
Electrical Rating 15A 250VAC
No.of Poles/Pins 1
