639H/2

Name: 639H/2 - Communica [Part No: 639H/2]
Brand: Apem
SKU: 639H/2
Price: 171 ZAR
Availability: InStock

SKU: 639H/2

BRAND: Apem

R 196.65_{(inc VAT)}
R 171.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Toggle Switches

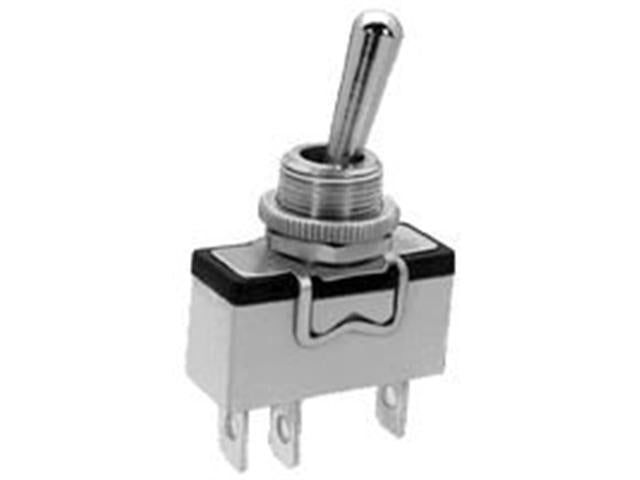

Apem Hi Quality/ Reliability Metal Lever Toggle Switch Single Pole SPST On -Off - On. Spade/Solder Terminal. 15A/250VAC, 5A/24VDC VDE Approved

Toggle Switch

Specifications

Electrical Specifications

Max. Current/Voltage Ratings : see tables below
Peak Current : 30A max. during 1/2 sine, 250VAC
Initial Contact Resistance : 10 mΩ max.
Insulation Resistance : 1.000 MΩ min. at 500VDC
Dielectric Strength :

2.000 Vrms 50 Hz min. between terminals
2.500 Vrms 50 Hz min. between terminals and frame

Electrical life : 10.000 cycles at full load

General Specifications

Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
Panel Thickness : 4,5 mm (.177) max. between 2 nuts
Operating Temperature : -20°C to +55°C

Downloads

Datasheet - 600H

Additional Information

Device	Switch
Type	Toggle
Transition Style	Momentary
Actuator Style	Toggle
Termination	Solder Lug
Switch Circuit	SP ON-OFF
Electrical Rating	15A 250VAC
No.of Poles/Pins	1

Upgrade your control panel with the Apem 639H/2 Metal Lever Toggle Switch. Designed for reliability and performance, this SPST switch handles up to 15A at 250VAC, ensuring efficient operation in any environment. Its durable construction and easy installation make it the perfect choice for both home and industrial applications. Experience seamless on-off functionality with the quality you can trust.
