6AV2123-2JB03-0AX0
SKU: 6AV2123-2JB03-0AX0
BRAND: Siemens
R 33,163.70 (inc VAT) R 28,838.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

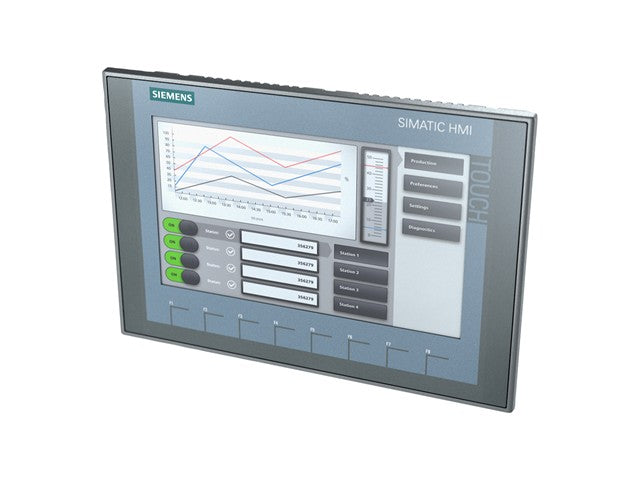

SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch Operation, 9" TFT Display, 65536 colors, PROFINET interface
TFT Display, 65536 colors, PROFINET interface
Specifications
Product Name: SIMATIC HMI KTP900 Basic
Model / Part Number: 6AV2123-2JB03-0AX0
HMI Series: SIMATIC Basic Panels
Display Type: TFT widescreen display, LED backlighting
Screen Size (Diagonal): 9 inches
Display Resolution: 800 × 480 pixels
Display Colors: 65,536 colors
Operation Type: Resistive touch screen + function keys
Number of Function Keys: 8
Supply Voltage: 24 V DC (19.2 – 28.8 V)
Current Consumption: Approx. 230 mA
Power Consumption (Typical): Approx. 5.5 W
Mounting Method: Panel mounting
Communication Interfaces: PROFINET (Industrial Ethernet), USB
USB Ports: 1 × USB (host)
Configuration Software: WinCC Basic (TIA Portal)
User Memory: Approx. 10 MB
Processor: Embedded ARM processor
Buzzer: Yes
Front Protection Rating: IP65
Rear Protection Rating: IP20
Operating Temperature: 0 °C to +50 °C
Storage Temperature: –20 °C to +60 °C
Mounting Orientation: Portrait or landscape
Dimensions (W × H × D): Approx. 267 × 182 × 55 mm
Panel Cut-out (W × H): Approx. 259 × 174 mm
Weight: Approx. 1.1 kg
Standards / Approvals: CE, cULus, RCM, KC
Downloads
Additional Information
Device
Display
Type
TFT Display, | 65536 | colors, | PROFINET | interface
Experience seamless control with the SIMATIC HMI KTP900 Basic (6AV2123-2JB03-0AX0). This 9" TFT display offers vibrant visuals, intuitive touch operation, and robust PROFINET connectivity, enhancing your automation efficiency. With its durable design and user-friendly interface, it's the perfect solution for industrial applications. Upgrade your monitoring and control capabilities today!
