6EP4134-3AB00-0AY0
SKU: 6EP4134-3AB00-0AY0
BRAND: Siemens
R 5,383.15 (inc VAT) R 4,681.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

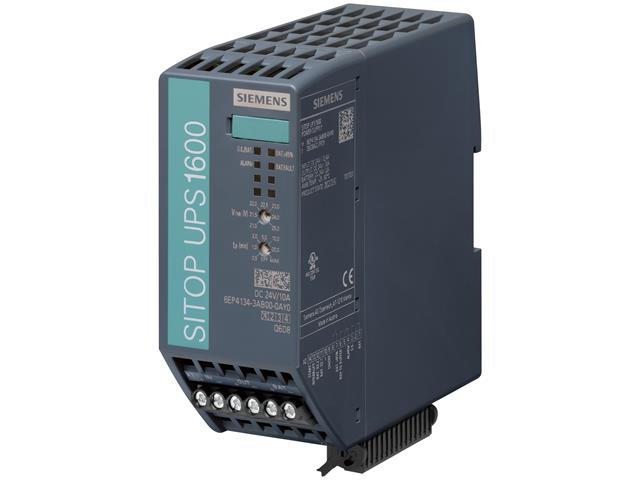

SITOP UPS1600 10 A Uninterruptible Power Supply Input: 24 V DC Output: 24 V DC/10 A
SITOP UPS1600 10 A Uninterruptible Power Supply
Specifications
Manufacturer: Siemens
Product family: SITOP UPS1600
Type: DC UPS (Uninterruptible Power Supply) module
Function:
Provides uninterrupted 24 V DC backup power during mains failure
Input voltage:
24 V DC nominal
Operating range: 21–29 V DC
Output voltage:
24 V DC buffered output
Buffer mode output range: 19–28.5 V DC
Output current:
Output power:
Peak current capability:
Up to 30 A short-duration peak current
Charging current:
Buffer switch threshold:
Adjustable from 21–25 V DC
UPS operation:
Seamless automatic switchover during power failure
Compatible with SITOP battery modules
Efficiency:
Mounting type:
DIN rail mount (EN 60715)
Dimensions (W × H × D):
Approx. 50 × 125 × 125 mm
Weight:
Protection class:
Protection features:
Short-circuit protection
Reverse polarity protection
Overload protection
Battery protection monitoring
Indicators & diagnostics:
Green LED: system OK
Yellow LED: battery/buffer mode
Red LED: alarm/fault indication
Relay signaling contacts
Connection type:
Operating temperature:
Cooling method:
Natural convection (fanless)
Standards & approvals:
CE
UL / cULus
CB
EN 55022 Class B
EN 61000-6-2
Applications:
PLC backup systems
Industrial automation
HMI and controller backup
Critical 24 V DC systems
Additional notes:
Works with external SITOP battery modules
Supports controlled shutdown and system diagnostics
Downloads
Additional Information
Device
Power Supply
Type
SITOP | UPS1600 | 10 A | Uninterruptible | Power Supply
Ensure seamless operation with the SITOP UPS1600 uninterruptible power supply. Delivering 10 A of reliable 24 V DC output, this power supply safeguards your equipment against outages, providing peace of mind and enhanced productivity. Perfect for critical applications, it’s your go-to solution for uninterrupted power.
