6EP4134-3AB00-1AY0
SKU: 6EP4134-3AB00-1AY0
BRAND: Siemens
R 6,688.98 (inc VAT) R 5,816.50 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

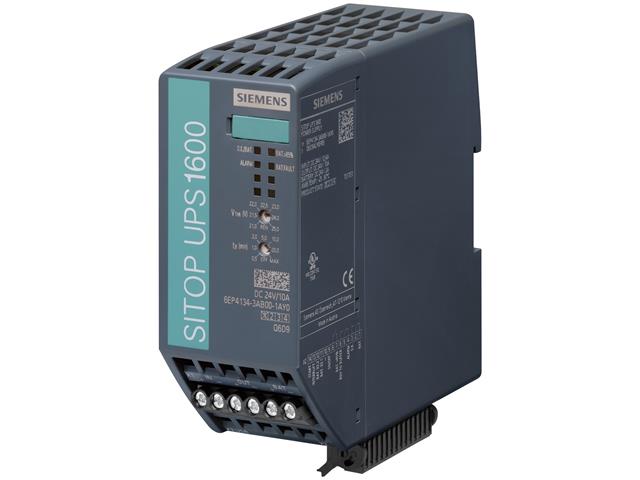

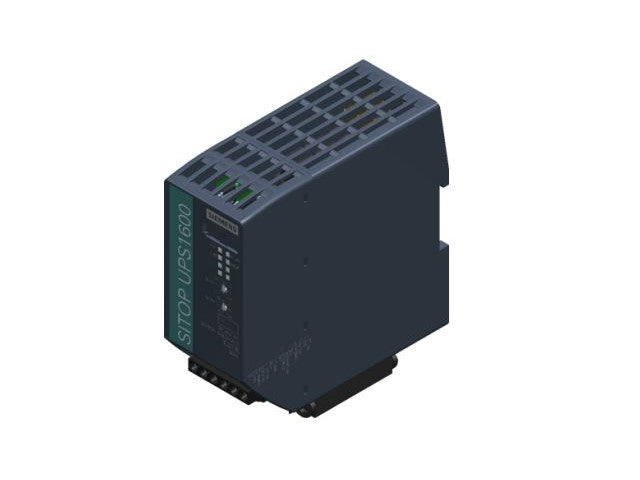

SITOP UPS1600 10 A USB Uninterruptible Power Supply With USB interface Input: 24 V DC output: 24 V DC/10 A
SITOP UPS1600 10 A USB Uninterruptible Power Supply
Specifications
Manufacturer: Siemens
Product family: SITOP UPS1600
Type: DC UPS (Uninterruptible Power Supply) module with USB interface
Product description:
SITOP UPS1600 10 A USB uninterruptible power supply module
Designed for uninterrupted 24 V DC backup systems
Input voltage:
24 V DC nominal
Operating range: 21–29 V DC
Output voltage:
24 V DC nominal
Buffer mode range: approx. 18.5–28.5 V DC
Output current:
10 A nominal
Peak current up to 30 A
Output power:
Charging current:
Adjustable from 0.1 A to 3 A
Buffer switch threshold:
Adjustable: 21–25 V DC
Configurable via software or rotary switch
Buffering time settings:
0.5 min
1 min
2 min
5 min
10 min
20 min
Maximum buffering mode
Efficiency:
Communication interface:
USB interface for diagnostics and monitoring
Protection features:
Short-circuit protection
Reverse polarity protection
Overload protection
Battery monitoring and protection
Indicators & diagnostics:
Green LED: System OK
Yellow LED: Battery/buffer operation
Red LED: Alarm/fault indication
Relay signaling outputs
Mounting type:
DIN rail mounting (EN 60715)
Dimensions (W × H × D):
Approx. 50 × 125 × 125 mm
Weight:
Protection class:
Operating temperature:
Cooling method:
Natural convection (fanless)
Connection type:
Standards & certifications:
CE
cULus
CB
IECEx
EN 55022 Class B
EN 61000-6-2
Applications:
PLC backup systems
Industrial automation
HMI backup systems
Critical 24 V DC systems
Control cabinets
Additional notes:
Requires compatible SITOP battery modules
Supports SITOP Manager software and USB diagnostics
Downloads
Additional Information
Device
Power Supply
Type
SITOP | UPS1600 | 10 A | USB | Uninterruptible | Power Supply
Ensure uninterrupted power for your devices with the SITOP UPS1600 10 A USB uninterruptible power supply. Featuring a reliable 24 V DC input and output, this power supply safeguards your equipment against outages, providing peace of mind and continuous operation. Perfect for critical applications, it combines efficiency with user-friendly USB connectivity.
