6EP4134-3AB00-2AY0
SKU: 6EP4134-3AB00-2AY0
BRAND: Siemens
R 9,282.80 (inc VAT) R 8,072.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

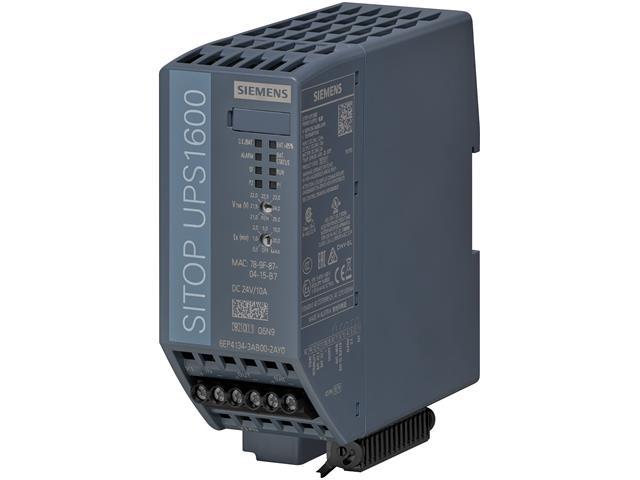

SITOP UPS1600 10 A Ethernet/ PROFINET Uninterruptible Power Supply With Ethernet/ PROFINET Interface
SITOP UPS1600 10 A Ethernet/ PROFINET Uninterruptible Power Supply
Specifications
Manufacturer: Siemens
Product family: SITOP UPS1600
Type: DC UPS (Uninterruptible Power Supply) module with Ethernet / PROFINET interface
Product description:
SITOP UPS1600 10 A Ethernet/PROFINET UPS module
Integrated Ethernet / PROFINET interface with OPC UA server and web server
Input voltage:
24 V DC nominal
Operating range: 21–29 V DC
Output voltage:
24 V DC nominal
Buffer mode range: 19–28.5 V DC
Output current:
10 A nominal
Peak current up to 30 A
Output power:
Charging current:
Adjustable from 0.1 A to 3 A
Buffer switch threshold:
Adjustable from 21–25 V DC
Configurable via rotary switch or software
Buffering time settings:
0.5 min
1 min
2 min
5 min
10 min
20 min
Maximum buffering mode
Communication interfaces:
Ethernet
PROFINET
OPC UA server
Integrated web server
Efficiency:
Protection features:
Short-circuit protection
Reverse polarity protection
Overload protection
Battery monitoring and protection
Indicators & diagnostics:
Green LED: System OK
Yellow LED: Battery/buffer mode
Red LED: Fault/alarm
Relay signaling outputs
Mounting type:
DIN rail mounting (EN 60715)
Dimensions (W × H × D):
Approx. 50 × 125 × 125 mm
Weight:
Protection class:
Operating temperature:
Cooling method:
Natural convection (fanless)
Connection type:
Standards & certifications:
CE
cULus
CB
IECEx
EN 55022 Class B
EN 61000-6-2
Applications:
PLC backup systems
Industrial automation
SCADA and PROFINET systems
HMI backup systems
Critical 24 V DC systems
Additional notes:
Requires compatible SITOP battery modules
Supports network diagnostics and remote monitoring via Ethernet/PROFINET
Downloads
Additional Information
Device
Power Supply
Type
SITOP | UPS1600 | 10 A | Ethernet/PROFINET | Uninterruptible | Power Supply
Ensure seamless operation with the SITOP UPS1600 10 A uninterruptible power supply. Featuring an Ethernet/PROFINET interface, this reliable power supply keeps your devices running smoothly, providing 24 V DC output and robust connectivity for enhanced performance. Perfect for industrial applications, it guarantees uninterrupted power, ensuring your systems stay online when it matters most.
