6ES7972-0BB12-0XA0
SKU: 6ES7972-0BB12-0XA0
BRAND: Siemens
R 1,107.45 (inc VAT) R 963.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

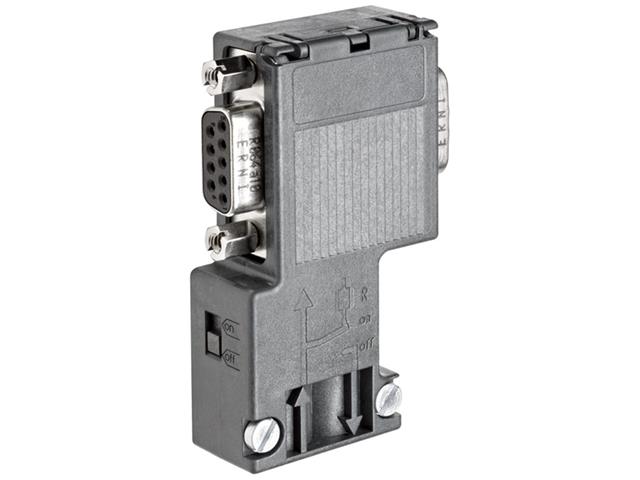

SIMATIC DP, Connection Plug for PROFIBUS up to 12 Mbit/s 90° Cable Outlet
SIMATIC DP, Connection Plug
Specifications
Suitability : for use for connecting PROFIBUS stations to the PROFIBUS bus cable
Transfer rate
Transfer rate / with PROFIBUS DP : 9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
for PROFIBUS cables 2
for network components or terminal equipment 1
Type of electrical connection
for PROFIBUS cables Screw
for network components or terminal equipment 9-pin sub D connector
Type of electrical connection / FastConnect : No
Techanical data
Design of terminating : Resistor Resistor combination integrated and connectable via slide switch
Material / of the enclosure : plastic
Locking mechanism design : Screwed joint
Design, dimensions and weights
Type of cable outlet : 90 degree cable outlet
width : 15.8 mm
height : 64 mm
depth : 35.6 mm
net weight 45 g
Ambient conditions
Ambient temperature
during operation -25 ... +60 °C
during storage -40 ... +70 °C
during transport -40 ... +70 °C
protection class IP : IP20
Product features, product functions, product components / general
product feature
Product component
PG connection socket : Yes
strain relief : Yes
Standards, specifications, approvals
Certificate of suitability
RoHS conformity : Yes
UL approval : Yes
Downloads
Additional Information
Device
Connection Plug
Type
SIMATIC DP
Enhance your PROFIBUS network with the 6ES7972-0BB12-0XA0 Connection Plug, designed for reliable connections at speeds up to 12 Mbit/s. Its durable, screw-type connections and integrated resistor ensure optimal performance in various environments. Ideal for seamless connectivity, this plug is a must-have for efficient industrial automation.
