6GK1503-2CB00

Name: 6GK1503-2CB00 - Communica [Part No: 6GK1503-2CB00]
Brand: Siemens
SKU: 6GK1503-2CB00
Price: 16625 ZAR
Availability: InStock

SKU: 6GK1503-2CB00

BRAND: Siemens

R 19,118.75_{(inc VAT)}
R 16,625.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Industrial Automation

Category: PLC & DCS

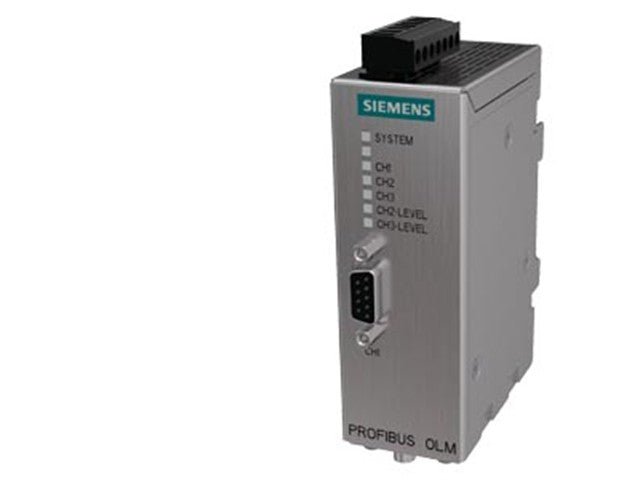

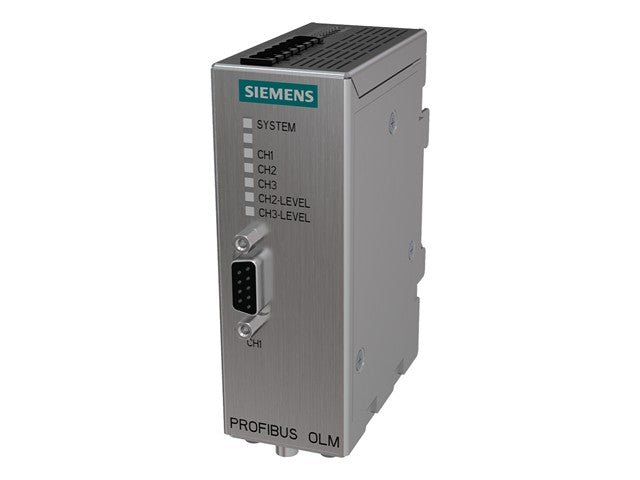

PROFIBUS OLM/G11 V4.0 Optical Link Module With 1 Rs 485 And 1 Glass Fiber Optic Cable Interface (2 BFOC Sockets), With Signaling Contact And Test Port

PROFIBUS OLM/G11 V4.0 Optical Link Module

Specifications

Product Type: PROFIBUS OLM/G11 V4.0 Optical Link Module with RS-485 & glass fiber optic interface
Transfer Rates: PROFIBUS: 9.6 kbit/s to 12 Mbit/s, PROFIBUS PA: 45.45 kbit/s
Electrical Interface: 1 × RS-485 (9-pin Sub-D)
Optical Interface: 1 × Fiber optic port (2 × BFOC sockets, multimode)
Signal Contact: 24 V DC rated, max 0.1 A
Power Supply: 24 V DC (18.8 to 28.8 V)
Current Consumption: Max 0.2 A
Wavelength: 860 nm (multimode fiber)
Max Fiber Length: Up to 3 km (50/125 µm or 62.5/125 µm)
Optical Sensitivity: –28 dB
Launch Power: –16 dB / –13 dB
Max Optical Attenuation: 50/125 µm: 10 dB, 62.5/125 µm: 12 dB
Propagation Delay: 6.5 bit
Operating Temperature: 0 to +60 °C
Storage Temperature: –40 to +70 °C
Humidity: Max 95% (non-condensing)
Protection Class: IP40
Dimensions (W × H × D): 39.5 × 112 × 74.5 mm
Weight : Approx. 340 g
Mounting: DIN rail or wall mounting
Redundancy Support: Ring redundancy supported
Approvals: UL 60950-1, CSA C22.2 No. 60950-1, EN 61000-6-2 / EN 61000-6-4

Downloads

Datasheet

Additional Information

Device	Module
Type	PROFIBUS \| OLM/G11 \| V4.0 \| Optical \| Link \| Module
