7MF0300-1VE01-5BF2-Z A00+E20+H02
SKU: 7MF0300-1VE01-5BF2-Z A00+E20+H02
BRAND: Siemens
Sold Out
R 22,630.28 (inc VAT) R 19,678.50 (ex VAT)
Siemens SITRANS P320 Pressure Transmitter Gauge Hart (4...20 mA) Max Measure Span: 160 Bar Female. Third. 1/2-14 NPT Diaphragm: Stainless Steel 316L

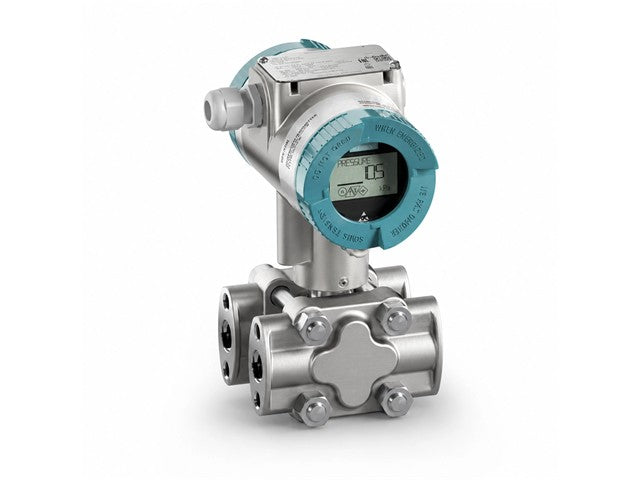

Siemens SITRANS P320 Pressure Transmitter
Specifications
Manufacturer: Siemens
Product family: SITRANS P320
Type: Pressure transmitter (Gauge pressure)
Measurement type:
Gauge pressure measurement
Output signal:
HART protocol
4…20 mA analog output
Measuring cell filling:
Maximum measuring span:
Process connection:
Wetted parts material:
Stainless steel 316L / 1.4404
Seal diaphragm: Stainless steel 316L
Sensor flange material:
Stainless steel 316 / 1.4408
Housing material:
Die-cast aluminum housing
Device design:
Explosion protection:
Intrinsic safety (ATEX approved)
Electrical connection:
2 × M20 × 1.5 cable entries
Display:
Integrated local display
Glass window cover
Option A00:
Cable gland and sealing plug attached
Option E20:
Option H02:
Overvoltage protection up to 6 kV (internal)
Protection features:
Overvoltage protection
Industrial EMC protection
Intrinsic safety protection
Communication protocol:
HART communication for diagnostics/configuration
Mounting type:
Process mounting via threaded pressure connection
Applications:
Industrial process automation
Oil & gas systems
Chemical processing
Water treatment
Hydraulic systems
Pressure monitoring systems
Additional features:
High accuracy pressure measurement
Remote configuration capability
Suitable for hazardous industrial environments
Downloads
Additional Information
Device
Transmitter
Type
Siemens | SITRANS | P320 | Pressure | Transmitter
Experience precise pressure measurement with the Siemens SITRANS P320 Pressure Transmitter. Designed for reliability, this stainless steel gauge offers a maximum span of 160 Bar, ensuring accurate readings for your industrial applications. Optimize your processes with this durable and efficient solution, perfect for demanding environments.
