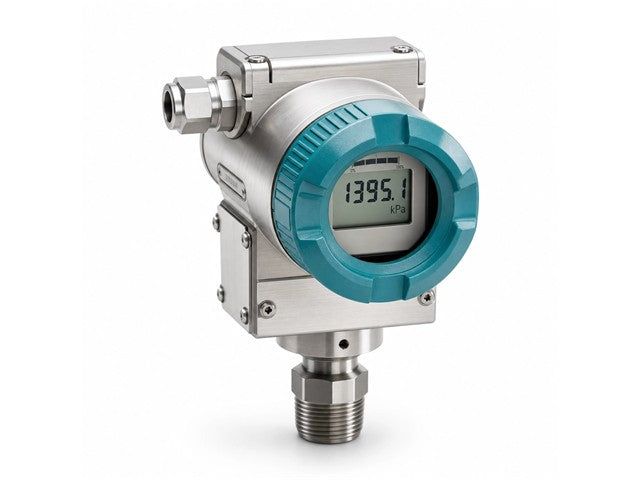

SITRANS P DS III / P410, HART, 4-20 mA Transmitter For Differential Pressure And Flow - special Configuration
SITRANS P DS III / P410, HART, 4-20 mA Transmitter
Specifications
Manufacturer: Siemens
Product family: SITRANS P DS III / P410
Type: Pressure transmitter (Gauge pressure)
Measurement type:
Gauge pressure measurement
Output signal:
4…20 mA analog output
HART communication protocol
Measuring cell filling:
Silicone oil
Pressure range / span:
1.6 … 160 bar g
(23.2 … 2320 psi g)
Overload limit:
250 bar
Wetted parts material:
Stainless steel diaphragm
Stainless steel measuring cell
Process connection:
Female thread 1/2-14 NPT
Housing material:
Die-cast aluminum housing
Housing design:
Standard industrial housing
Housing cover with viewing window
Explosion protection:
Intrinsically safe (EEx ia / Ex approved)
Electrical connection / cable entry:
Cable gland M20 × 1.5
Option A02:
Stainless steel mounting bracket included
Option B11:
English plate inscription / labeling
Communication features:
HART remote diagnostics
Remote parameter configuration
Protection features:
Industrial EMC protection
Overpressure resistant design
Intrinsic safety protection
Mounting type:
Process mounting via threaded pressure connection
Applications:
Industrial automation
Process control systems
Oil & gas systems
Chemical processing
Water treatment
Hydraulic pressure monitoring
Additional features:
High accuracy pressure measurement
Suitable for hazardous industrial environments
Remote calibration and diagnostics support
Product lifecycle note:
Product discontinued
Successor series: SITRANS P320 / P420
Additional Information
Device
Transmitter
Type
SITRANS | P | DS | III / P410 | HART | 4-20 mA | Transmitter
Discover the Siemens SITRANS P DS III / P410 pressure transmitter, expertly designed for precise differential pressure and flow measurement. With HART communication and a robust stainless steel construction, it ensures high accuracy and reliability in demanding industrial environments. Ideal for oil and gas, chemical processing, and water treatment applications, it offers remote diagnostics and calibration for seamless operation. Elevate your process control with this intrinsically safe, high-performance transmitter.
