7MH4960-2AA01

SKU: 7MH4960-2AA01

BRAND: Siemens


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

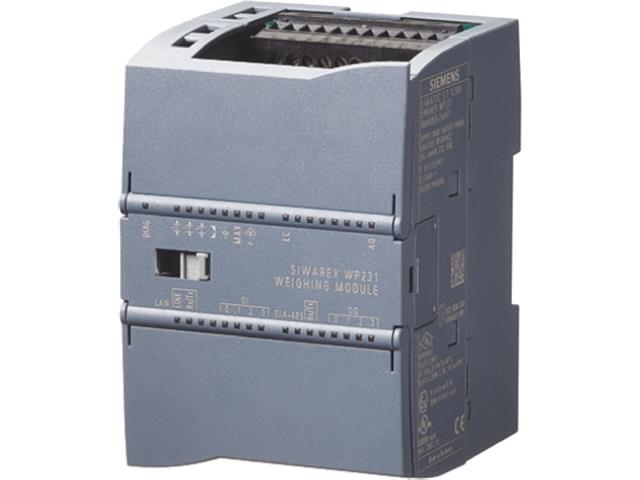

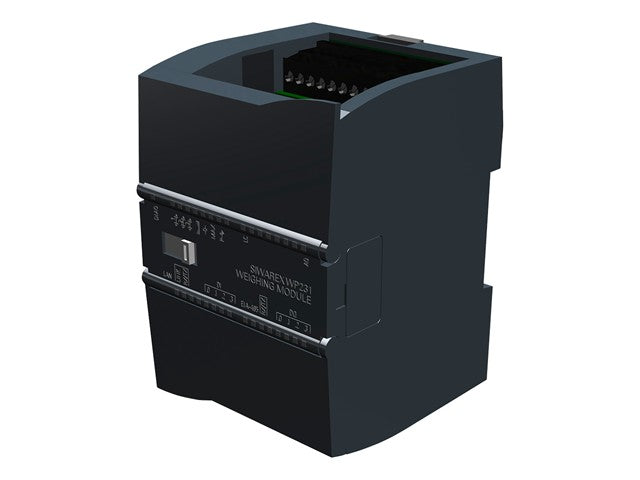

SIMATIC S7-1200 or Stand Alone, SIWAREX WP231, Single-Channel Legal-for-Trade Weighing Module - Analog Load Cells / Strain Gauges (full bridges), 4xDI, 4xDQ, 1xAQ, 1xRS485, 1xEthernet, 1xLC Load Cell Interface

S7-1200 or Stand Alone

Specifications

  • Manufacturer: Siemens
  • Product family: SIWAREX WP231
  • Type: Single-channel weighing electronics / weighing module
  • Application type:
    • Platform scales
    • Hopper scales
    • Industrial weighing systems
  • Compatible systems:
    • SIMATIC S7-1200
    • Stand-alone operation supported
  • Load cell support:
    • Analog strain gauge load cells
    • Full bridge load cells
    • Input sensitivity: 1–4 mV/V
  • Legal-for-trade capability:
    • Calibratable / legal-for-trade approved
    • Must comply with local verification laws
  • Communication interfaces:
    • 1 × Ethernet interface
    • 1 × RS485 interface
  • Digital inputs:
    • 4 × DI
  • Digital outputs:
    • 4 × DO
  • Analog outputs:
    • 1 × AO
    • 0/4…20 mA output
  • Load cell interface:
    • 1 × LC interface
  • Diagnostics features:
    • Detailed load cell diagnostics
    • Compatible with SIWAREX DB digital junction box
    • Supports diagnostic alarms and wire-break detection
  • Communication protocols:
    • Ethernet communication
    • Modbus support
    • Industrial automation integration
  • Power supply:
    • 24 V DC
  • Mounting type:
    • DIN rail mounting

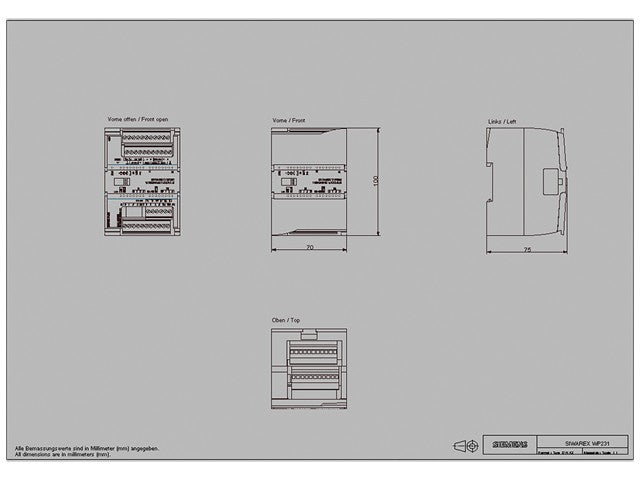

  • Dimensions:
    • Approx. 70 × 100 × 75 mm
  • Weight:
    • Approx. 0.28–0.30 kg
  • Protection & diagnostics:
    • Short-circuit monitoring
    • Supply voltage monitoring
    • Hardware interrupt support
    • Diagnostic LEDs
  • Operating environment:
    • Industrial automation environments
    • Suitable for harsh factory conditions
  • Applications:
    • Industrial weighing systems
    • Filling systems
    • Hopper and tank weighing
    • Packaging machinery
    • Process automation
  • Additional features:
    • Stand-alone or PLC-integrated operation
    • High-precision weighing electronics
    • Remote diagnostics and configuration support
    • Supports SIWAREX DB junction boxes (7MH5001 series)

Downloads

Additional Information

Device Stand Alone
Type S7-1200
Enhance your industrial automation with the SIMATIC S7-1200 SIWAREX WP231 weighing module. This single-channel, legal-for-trade solution supports analog load cells and offers versatile connectivity options, ensuring precise measurements and reliable performance for your projects. Experience seamless integration and improved efficiency today!
